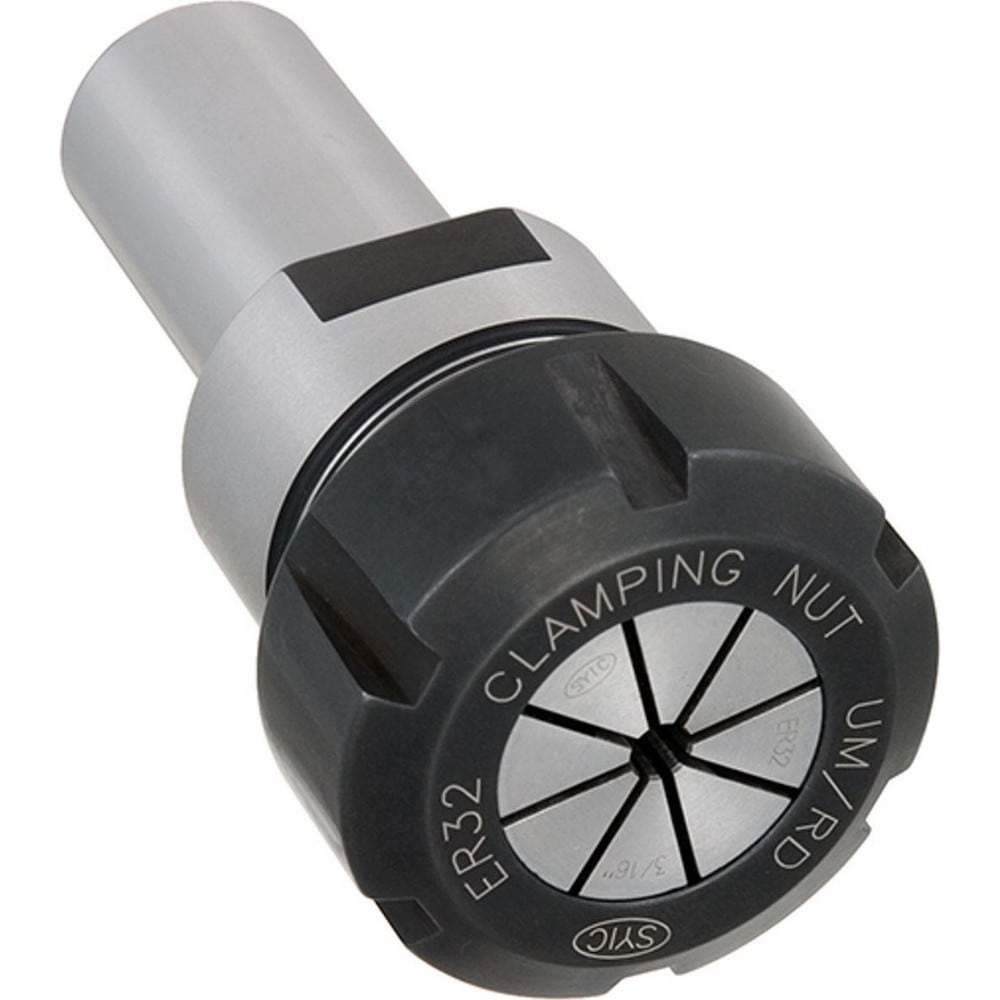

Collet Chuck: 0.5510 to 0.5510" Capacity, ER Collet, Straight Shank
Item #: 66910670
Brand: Techniks
Model #: 04858
Product Specifications
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Straight |
| Projection (mm) | 140.00 |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 0.5510 |
| Maximum Collet Capacity (Decimal Inch) | 0.5510 |
| Overall Length (mm) | 167.5 |
| Nose Diameter (Mm) ( - 2 Decimals) | 34 |
| Type | STRSHK |
| UNSPSC Code | 27112808 |
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Straight |
| Projection (mm) | 140.00 |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 0.5510 |
| Maximum Collet Capacity (Decimal Inch) | 0.5510 |
| Overall Length (mm) | 167.5 |
| Nose Diameter (Mm) ( - 2 Decimals) | 34 |
| Type | STRSHK |
| UNSPSC Code | 27112808 |
| MSC Part # | 66910670 |
| Mfr Part # | 04858 |
| Country of Origin Country of Origin is subject to change | Taiwan |
