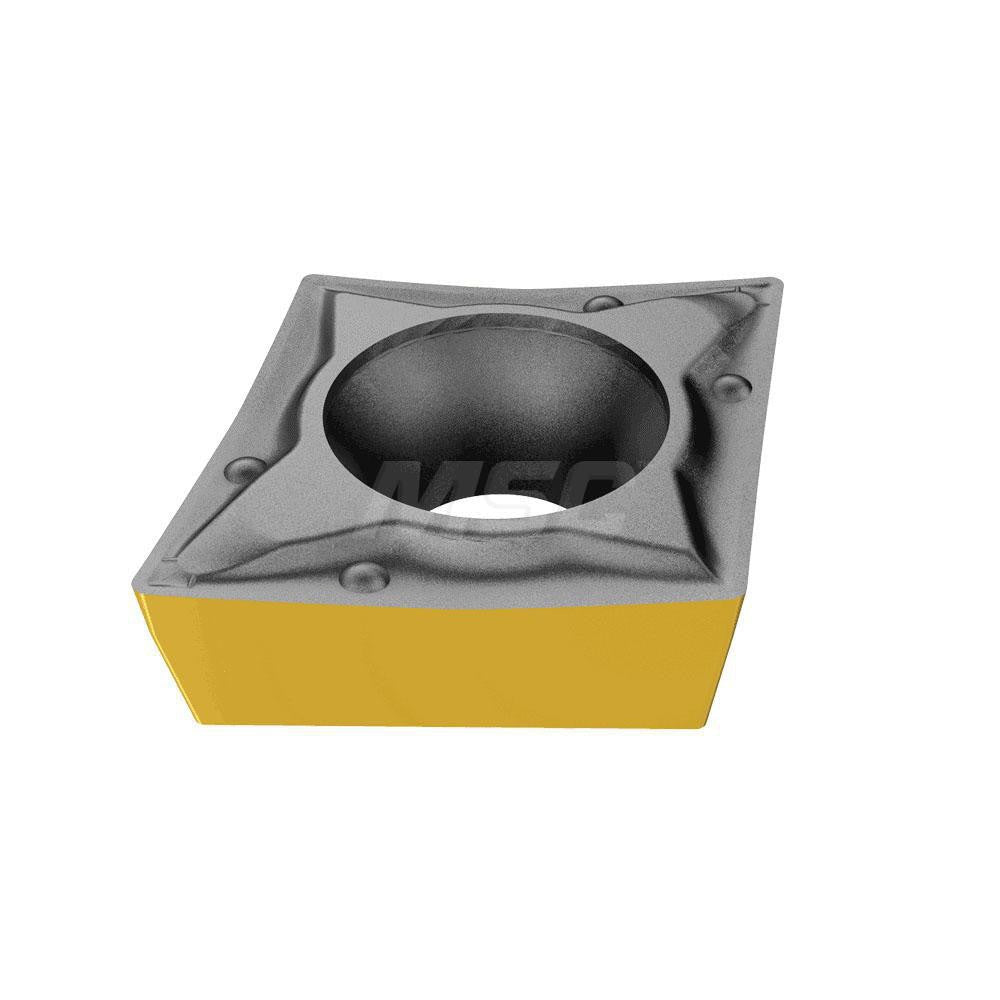

Turning Insert: CCMT 2-1 PF IC6015, Carbide
Item #: 50130327
Brand: Iscar
Model #: 5566972
Product Specifications
| ANSI Insert Code | CCMT2-1 |
| ISO Insert Code | CCMT060204 |
| Insert Style | CCMT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80 |
| Manufacturer Grade | IC6015 |
| Coating/Finish | TiCN; TiN; AI2O3 |
| Series | Isoturn |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | PF |
| ANSI Size Code | 2-1 |
| ISO Size Code | 060204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2-1 |
