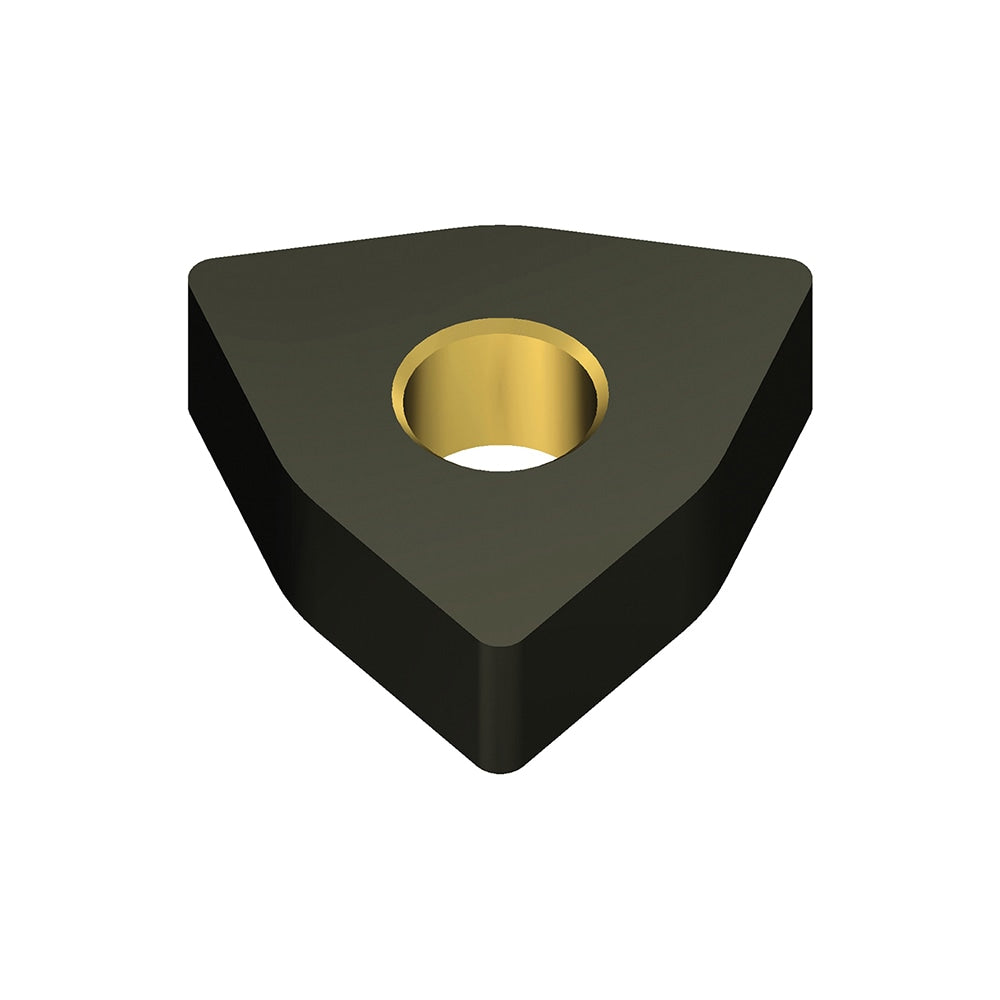

Turning Insert: WNMA432 AC4010K, Carbide
Item #: 38276697
Brand: Sumitomo
Model #: 19T1372
Product Specifications
| ANSI Insert Code | WNMA432 |
| ISO Insert Code | WNMA |
| Relief Angle | 0 |
| Insert Style | WNMA |
| Corner Radius (Inch) | 1/32 |
| Included Angle | 80 |
| Manufacturer Grade | AC4010K |
| Coating/Finish | TiCN; Al2O3 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Carbide |
| Insert Shape | W - Trigon 80-Deg |
| Chip Breaker Operation | Flat Top |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance |
| Side Clearance | Negative |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Insert Holding Method | Pin; Screw |
| Coating Process | CVD |
| Rake | Negative |
| Primary Workpiece Material Code | K |
| Manufacturers Catalog Number | WNMA432-AC4010K |
| Material Grade | K10 |
| Proprietary Coating Designation | Super FF |
| Chip Breaker | Flat Top |
| Rake Angle | 0 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| ANSI Size Code | 432 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
