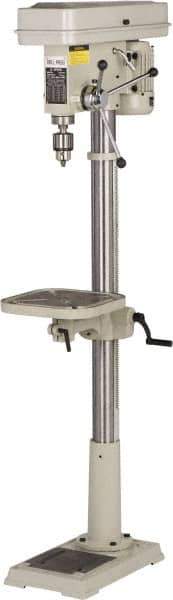

Enco - 346mm Swing, Step Pulley Drill Press - 16 Speed, 3/4 hp, Single Phase
Item #: 32752487
Brand: Enco
Exact Tooling IR#: 04
Features and Benefits
Floor drill presses, also known as standing drill presses, offer more power options than bench drill presses. They are most suited for heavy-duty operations.
Drill presses are used for several countersinking, counterboring, drilling, reaming and tapping operations.They are used for heavy-duty metalworking operations.
Step pulleys are driven by a belt system that is manually changed to achieve a range of fixed speeds.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Stand Type | Floor |
| Machine Type | Drill Press |
| Swing Distance (mm) | 346.00 |
| Swing Distance (Decimal Inch) | 13.6220 |
| Spindle Speed Control | Step Pulley |
| Phase | 1 |
| Spindle Taper Size | 2MT |
| Spindle Travel Length (mm) | 80.00 |
| Spindle Travel Length (Decimal Inch) | 3.1496 |
| Horsepower (HP) | 3/4 |
| Voltage | 115 |
| Minimum Spindle Speed (RPM) | 240 |
| Maximum Spindle Speed (RPM) | 3300 |
| Drilling Capacity in Steel (mm) | 16.00 |
| Drilling Capacity in Cast Iron (mm) | 18.00 |
| Maximum Chuck Capacity (mm) | 16.00 |
| Radial Head | NonRadial Head |
| Number of Spindle Speeds | 16 |
| Spindle to Table Distance (mm) | 670.00 |
| Spindle to Table Distance (Decimal Inch) | 26.3780 |
| Minimum Spindle to Column Distance (Inch) | 6.8110 |
| Spindle to Column Distance (Inch) | 173 |
| Table Length (Decimal Inch) | 11.4173 |
| Table Length (mm) | 290.00 |
| Table Width/Diameter (mm) | 290.00 |
| Table Width/Diameter (Decimal Inch) | 11.4173 |
| Table Load Capacity (Lb.) | 20.00 |
| Table Slot Size (mm) | 16 |
| Table Slot Size (Decimal Inch) | 0.6299 |
| Table Tilt (Degrees) | 45.00 |
| Base Length (mm) | 460.00 |
| Base Length (Decimal Inch) | 18.1102 |
| Column Diameter (Decimal Inch) | 2.7559 |
| Column Diameter (mm) | 70.00 |
| Overall Length (mm) | 580.00 |
| Overall Length (Decimal Inch) | 22.8346 |
| Overall Height (mm) | 1600 |
| Overall Height (Decimal Inch) | 63.00 |
| Overall Depth (Decimal Inch) | 13.7795 |
| Overall Depth (mm) | 350.00 |
