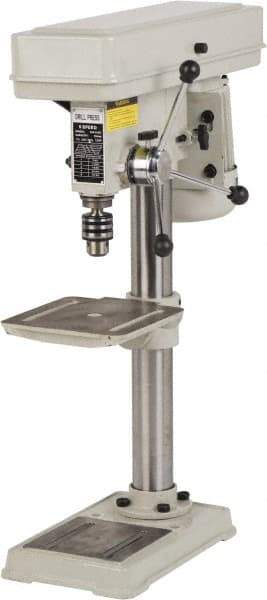

Enco - 254mm Swing, Step Pulley Drill Press - 5 Speed, 1/2 hp, Single Phase
Item #: 32752446
Brand: Enco
Exact Tooling IR#: 04
Features and Benefits
Bench drill presses, also known as bench top, are stationary presses that are mounted to a workbench. They are used for precision applications, on smaller workpieces and where limited space is a concern.
Drill presses are used for several countersinking, counterboring, drilling, reaming and tapping operations.They are used for heavy-duty metalworking operations.
Step pulleys are driven by a belt system that is manually changed to achieve a range of fixed speeds.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Stand Type | Bench |
| Machine Type | Drill Press |
| Swing Distance (mm) | 254.00 |
| Swing Distance (Decimal Inch) | 10.0000 |
| Spindle Speed Control | Step Pulley |
| Phase | 1 |
| Spindle Taper Size | 33JT |
| Spindle Travel Length (mm) | 60.00 |
| Spindle Travel Length (Decimal Inch) | 2.3622 |
| Horsepower (HP) | 0.5 |
| Voltage | 115 |
| Minimum Spindle Speed (RPM) | 620 |
| Maximum Spindle Speed (RPM) | 2600 |
| Drilling Capacity in Steel (mm) | 13.00 |
| Drilling Capacity in Cast Iron (mm) | 15.00 |
| Maximum Chuck Capacity (mm) | 13.00 |
| Radial Head | NonRadial Head |
| Number of Spindle Speeds | 5 |
| Spindle to Table Distance (mm) | 325.00 |
| Spindle to Table Distance (Decimal Inch) | 12.7953 |
| Minimum Spindle to Column Distance (Inch) | 5 |
| Spindle to Column Distance (Inch) | 127 |
| Table Length (Decimal Inch) | 7.4803 |
| Table Length (mm) | 190.00 |
| Table Width/Diameter (mm) | 190.00 |
| Table Width/Diameter (Decimal Inch) | 7.4803 |
| Table Load Capacity (Lb.) | 15.00 |
| Table Slot Size (mm) | 12 |
| Table Slot Size (Decimal Inch) | 0.4724 |
| Table Tilt (Degrees) | 45.00 |
| Base Length (mm) | 340.00 |
| Base Length (Decimal Inch) | 13.3858 |
| Column Diameter (Decimal Inch) | 2.2835 |
| Column Diameter (mm) | 58.00 |
| Overall Length (mm) | 580.00 |
| Overall Length (Decimal Inch) | 22.8346 |
| Overall Height (mm) | 720 |
| Overall Height (Decimal Inch) | 28.43 |
| Overall Depth (Decimal Inch) | 12.9921 |
| Overall Depth (mm) | 330.00 |
