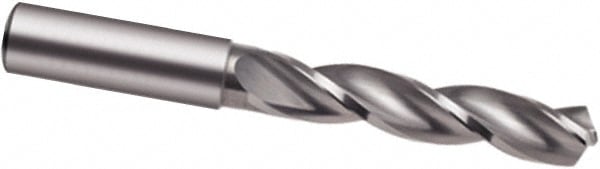

Jobber Drill: 3.00 mm Dia, 130 deg Point, Solid Carbide
Item #: 53721916
Brand: Guhring
Model #: 9055180030000
Product Specifications
| Drill Bit Size (mm) | 3.00 |
| Drill Bit Size (Decimal Inch) | 0.1181 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Proprietary |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron |
| Coolant Through | No |
| Number of Flutes | 3 |
| Primary Workpiece Material Code | K; N |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Spiral Type | Regular |
| Flute Length (mm) | 28.00 |
| Flute Length (Decimal Inch) | 1.1024 |
| Series | 5518 |
| Tool Application | Self-Centering |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6 |
| Maximum Drilling Depth (Decimal Inch) | 0.9250 |
| Maximum Drilling Depth (mm) | 23.50 |
| Shank Length (mm) | 36 |
| Drill Bit Diameter Tolerance | m7 |
| Web Thinning | Web-Thinned |
| Shank Type | Straight |
| Standards | DIN 6535; DIN 6537 L |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1000 - 0.1500 |
| Drill Bit Size Range (mm) | 3.00 - 4.00 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
