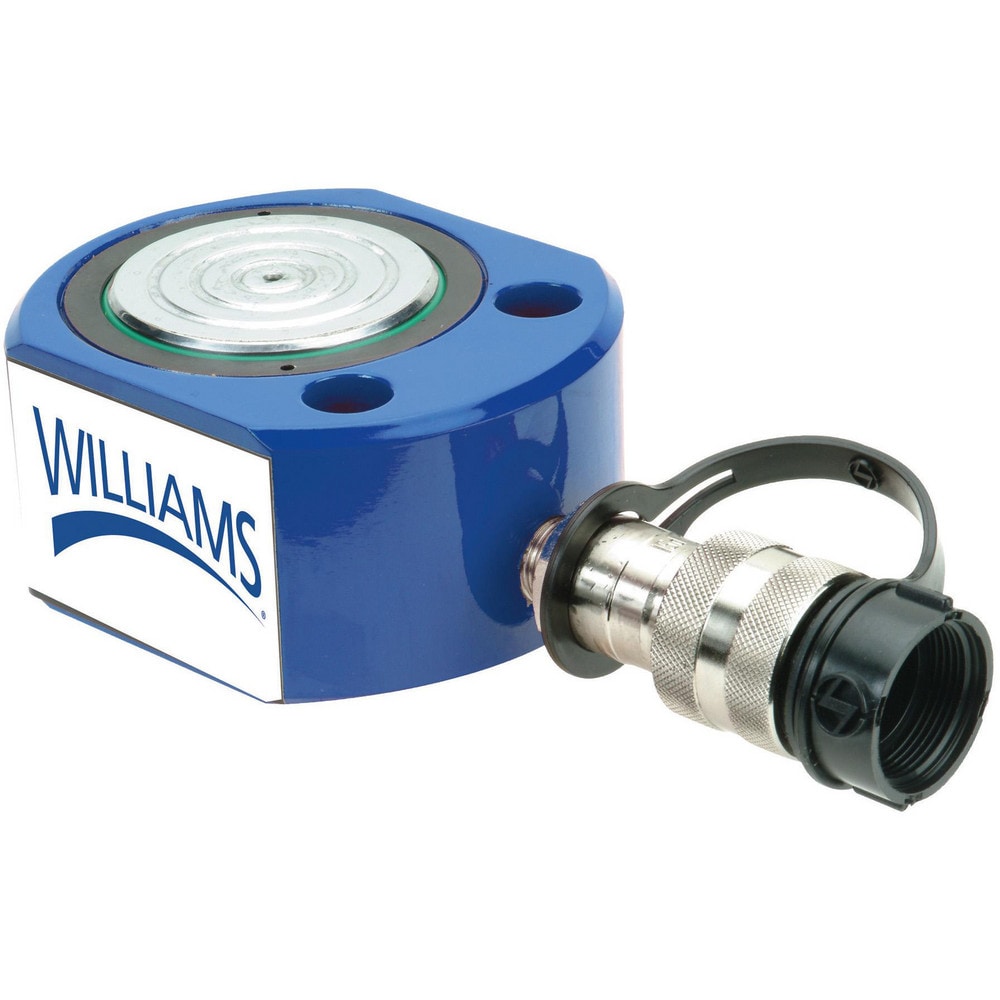

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 50; Stroke Length: 0.63; Piston Stroke (Decimal Inch): 0.6300; Oil Capacity: 6.21; Cylinder Bore Diameter (Decimal Inch): 0.75; Cylinder Effective Area: 9.86; Lowered Height: 2.64
Item #: 48626915
Brand: Williams
Model #: JHW6CF50T05
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 50 |
| Stroke Length | 0.63 |
| Piston Stroke (Decimal Inch) | 0.6300 |
| Oil Capacity | 6.21 |
| Cylinder Bore Diameter (Decimal Inch) | 0.75 |
| Cylinder Effective Area | 9.86 |
| Lowered Height | 2.64 |
| Retracted Length | 3 |
| Extended Length | 3.27 |
| Cushion Type | No Cushion |
| Bore Diameter | 0.7500 |
| Outside Diameter | 4.5 |
| Rod Diameter | .43 |
| Plunger Type | Center Hole |
| Telescopic | No |
| Maximum Working Pressure | 10140.000 |
| Body Material | Steel |
| Rod Thread Size | 0.79 |
| Saddle Diameter | 4.5 |
| Plunger Internal Thread Size | 2.13 |
| Series | 0 |
| Collar Thread | 2-3/4 - 16 |
| Collar Thread Length | 1.81 |
| Plunger Internal Thread Length | 2.25 |
| Y Center Hole Diameter | 0.75 |
| Maximum Height (Inch) | 3.2700 |
| Includes | Carrying Case |
| For Use With | Perfect for low clearance areas needing a little height boost |
| UNSPSC Code | 27121602 |
