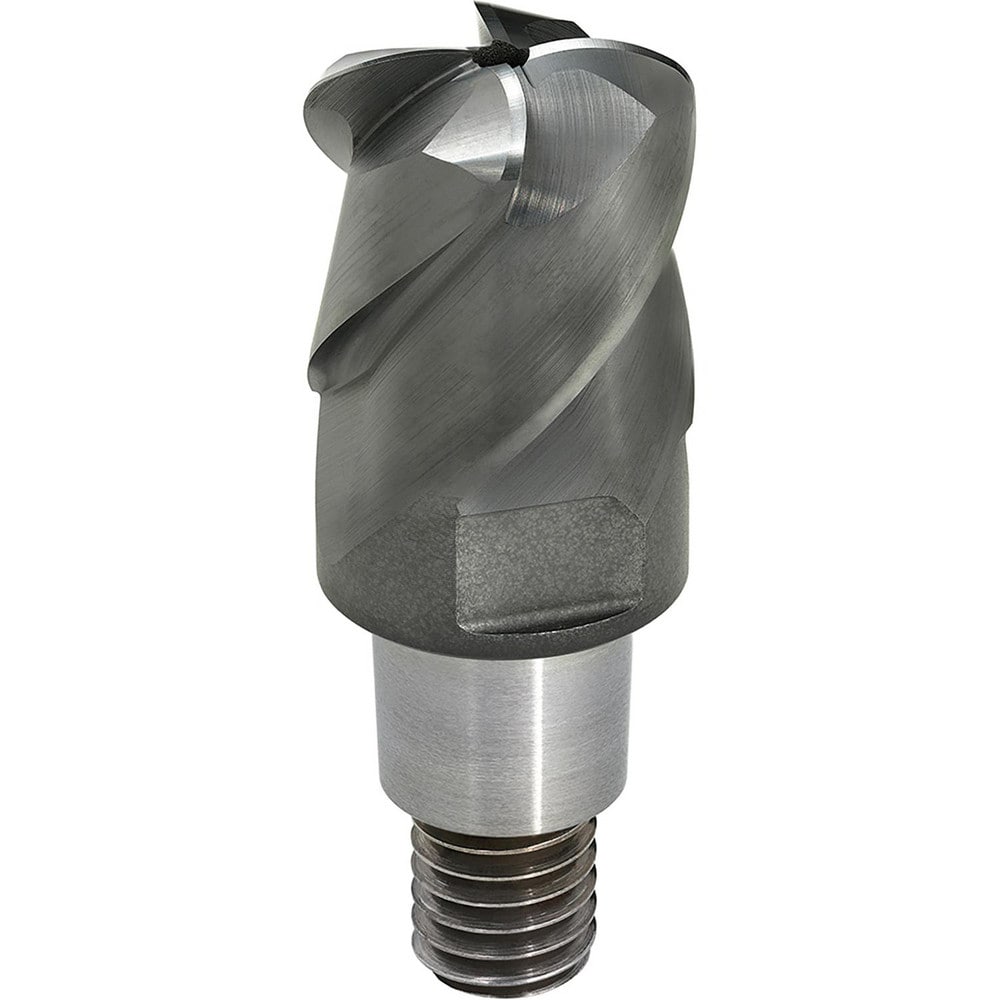

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 19.05; Mill Diameter (Inch): 3/4; Length of Cut (Inch): 3/64; Length of Cut (mm): 1.1900; Number Of Flutes: 4
Item #: 16480998
Brand: Mitsubishi
Model #: 10565520
Product Specifications
| Mill Diameter (mm) | 19.05 |
| Mill Diameter (Inch) | 3/4 |
| Length of Cut (Inch) | 3/64 |
| Length of Cut (mm) | 1.1900 |
| Number Of Flutes | 4 |
| Overall Length (mm) | 51.0000 |
| Corner Radius (mm) | 0.00 |
| Coating/Finish | AlCrN |
| End Mill Material | Carbide |
| Corner Radius (Decimal Inch) | 0.0000 |
| Overall Length (Decimal Inch) | 2.0080 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Centercutting | No |
| Connection Type | iMX20 |
| Flute Type | Helical |
| Material Grade | Solid Carbide |
| Helix Angle | 45 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Coolant Through | Yes |
| Variable Helix | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0470 |
| Variable Index | No |
| UNSPSC Code | 27112803 |
