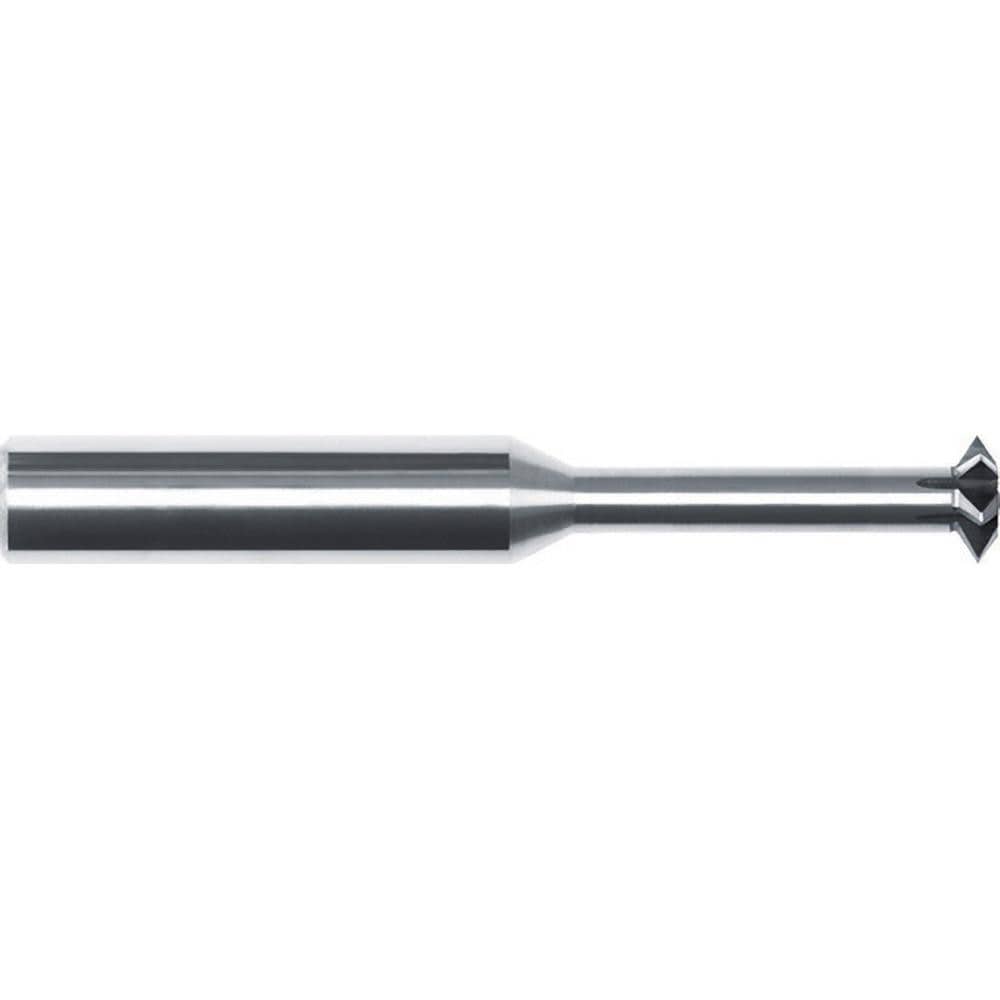

Single Profile Thread Mills; Maximum Threads Per Inch: 32; Minimum Pitch (Decimal Inch): 0.0909; Minimum Threads Per Inch: 11; Maximum Pitch (Decimal Inch): 0.0313; Material: Solid Carbide; Thread Type: Internal, External
Item #: 13798509
Brand: Internal Tool
Model #: 88-1060
Product Specifications
| Maximum Threads Per Inch | 32 |
| Minimum Pitch (Decimal Inch) | 0.0909 |
| Minimum Threads Per Inch | 11 |
| Maximum Pitch (Decimal Inch) | 0.0313 |
| Material | Solid Carbide |
| Thread Type | Internal; External |
| Thread Size | M16x2; 5/8-11 |
| Thread Depth (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Cutting Diameter (Inch) | 1/2 |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1 |
| Minimum Nominal Diameter (Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Material Grade | Micrograin |
| Neck Diameter (Decimal Inch) | 0.3000 |
| Neck Length (Decimal Inch) | 1.0000 |
| Series | 88 |
| Thread Standard | UN; Metric |
| Number Of Flutes | 5 |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Coating/Finish | Natural |
| UNSPSC Code | 23242117 |
