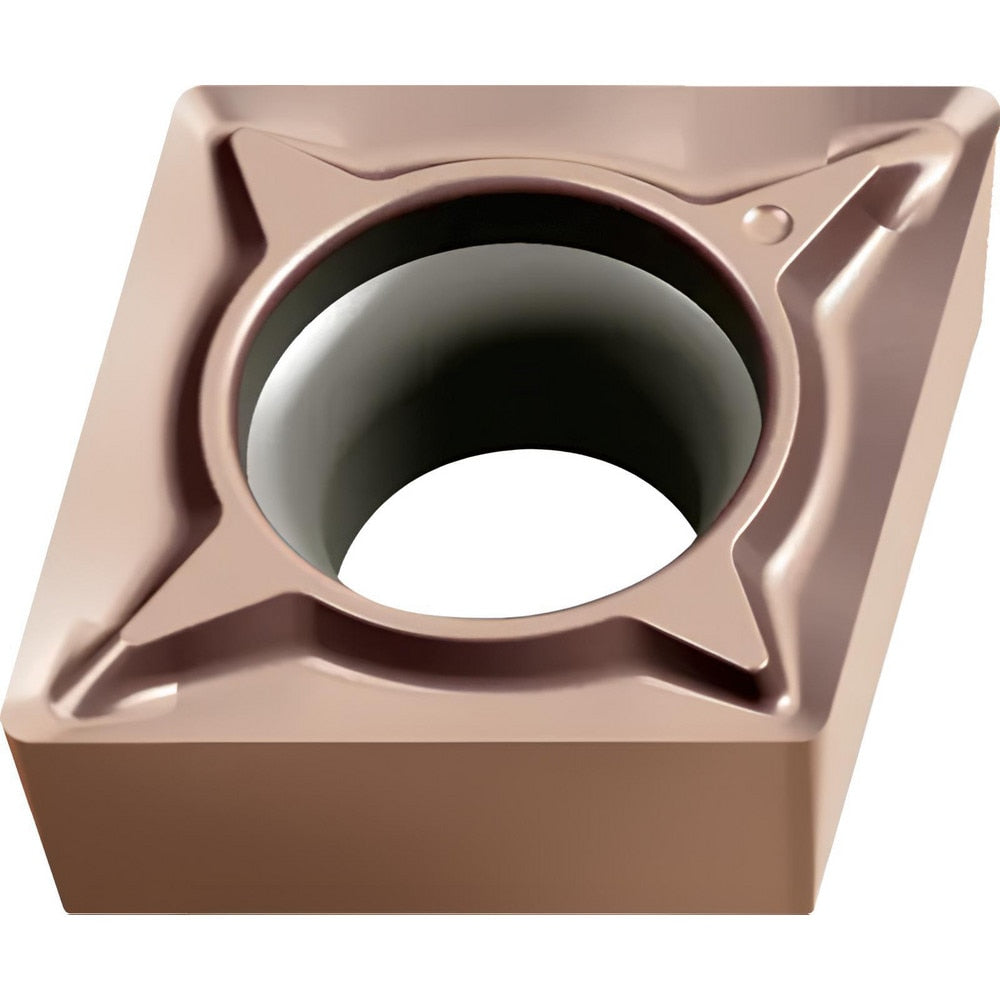

Boring Inserts; Insert Style: CPGT; Insert Size Code: 1.81.51; Insert Material: Cermet; Material Grade: K10, M10, P10; Manufacturer Grade: WEP10C; Inscribed Circle (Inch): 7/32
Item #: 13246384
Brand: Walter
Model #: 7780023
Product Specifications
| Insert Style | CPGT |
| Insert Size Code | 1.81.51 |
| Insert Material | Cermet |
| Material Grade | K10; M10; P10 |
| Manufacturer Grade | WEP10C |
| Inscribed Circle (Inch) | 7/32 |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Hole Diameter (Decimal Inch) | 0.0980 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.50 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.37 |
| Corner Radius (Inch) | 1/64 |
| Relief Angle | 11 |
| Rake | Positive |
| Chipbreaker | FP2 |
| Series | CPGT-FP2 |
| Coating Process | PVD |
| Included Angle | 80 |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Iso Code | CPGT050204M-FP2 WEP10C |
| Standards | ISO; ANSI |
| Rake Angle | 18 |
| Manufacturers Catalog Number | 7780023 |
| Length (Decimal Inch - 4 Decimals) | 0.2220 |
| Lead Angle | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.222 |
| Coating/Finish | TiCN; TiAlN |
| UNSPSC Code | 23242105 |
| Length (mm) | 5.64 |
| Maximum Depth of Cut (Decimal Inch) | 0.0739 |
