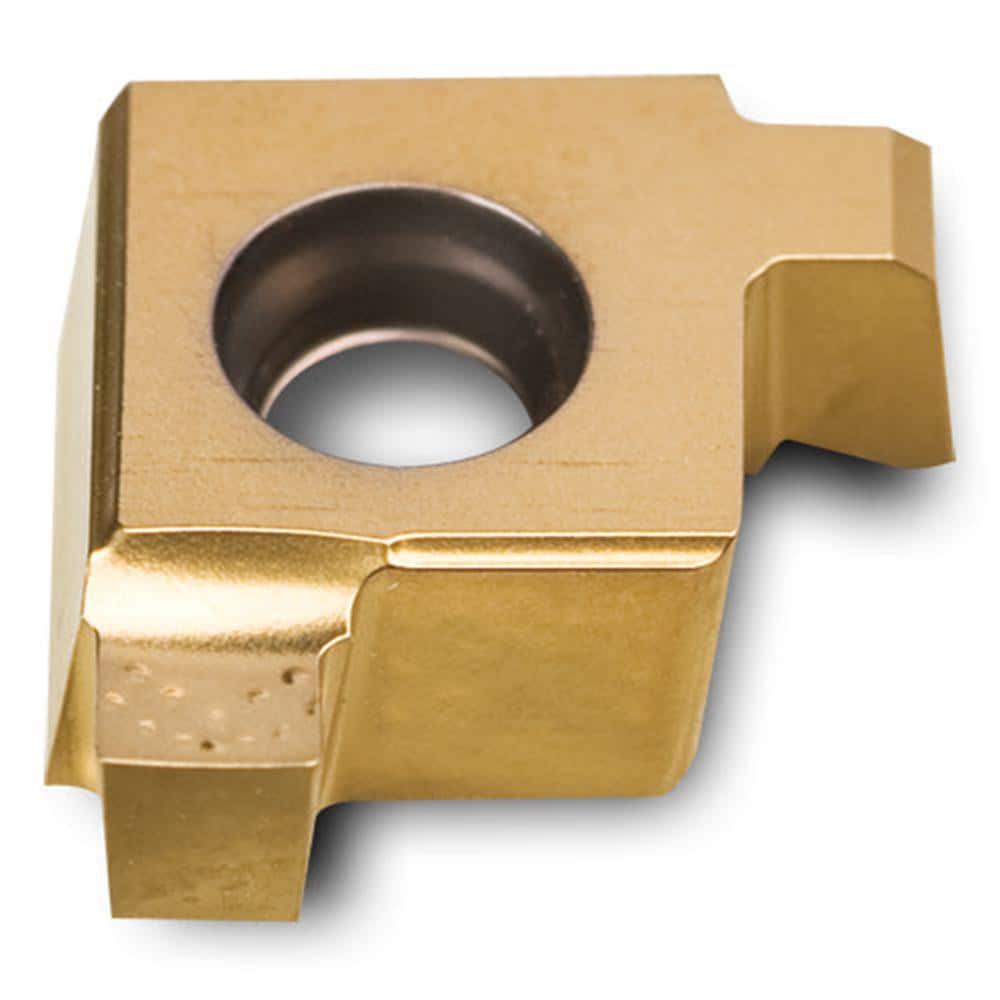

Grooving Insert: XCMT GV TT9080, Solid Carbide
Item #: 18694422
Brand: Ingersoll Cutting Tools
Model #: 6318390
Product Specifications
| Insert Style | XCMT |
| Insert Size Code | 06R-200020 |
| Cutting Width (Decimal Inch) | 0.079 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Insert Material | Carbide |
| Manufacturer Grade | TT9080 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Rake | Positive |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Multi-use Tool | No |
| Series | XCMT |
| Coating Process | PVD |
| Rake Angle | 7 |
| Overall Length (Decimal Inch) | 0.25 |
| Overall Length (Inch) | 1/4 |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | XCMT06R-200020GV TT9080 |
| Iso Code | XCMT06R-200020GV TT9080 |
| UNSPSC Code | 23242105 |
| Chip Breaker | GV |
| Coating/Finish | TiN; TiAlN |
