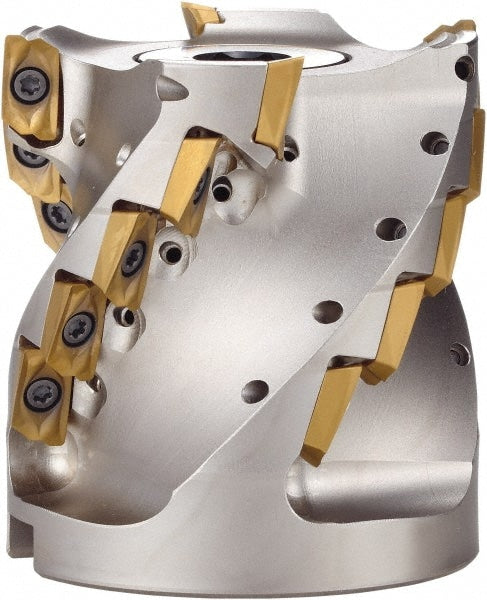

2" Cut Diam, 3/4" Arbor Hole Diam, 2.913" Max Depth, Indexable Square-Shoulder Face Mill
Item #: 55704308
Brand: OSG
Model #: 53001000
Product Specifications
| Maximum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (mm) | 50.80 |
| Maximum Depth of Cut (Decimal Inch) | 2.9130 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | ZDKT15... |
| Cutter Style | PSEL |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | 53001 |
| Overall Height (Decimal Inch) | 2.9130 |
| Keyway Width (Decimal Inch) | 0.3150 |
| Hub Diameter (Decimal Inch) | 1.7720 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Keyway Depth (Decimal Inch) | 0.1970 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 3 |
| Number Of Flutes | 3 |
| Maximum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (mm) | 50.80 |
| Maximum Depth of Cut (Decimal Inch) | 2.9130 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | ZDKT15... |
| Cutter Style | PSEL |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | 53001 |
| Overall Height (Decimal Inch) | 2.9130 |
| Keyway Width (Decimal Inch) | 0.3150 |
| Hub Diameter (Decimal Inch) | 1.7720 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Keyway Depth (Decimal Inch) | 0.1970 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 3 |
| Number Of Flutes | 3 |
| MSC Part # | 55704308 |
| Mfr Part # | 53001000 |
| Country of Origin Country of Origin is subject to change | Luxembourg |
