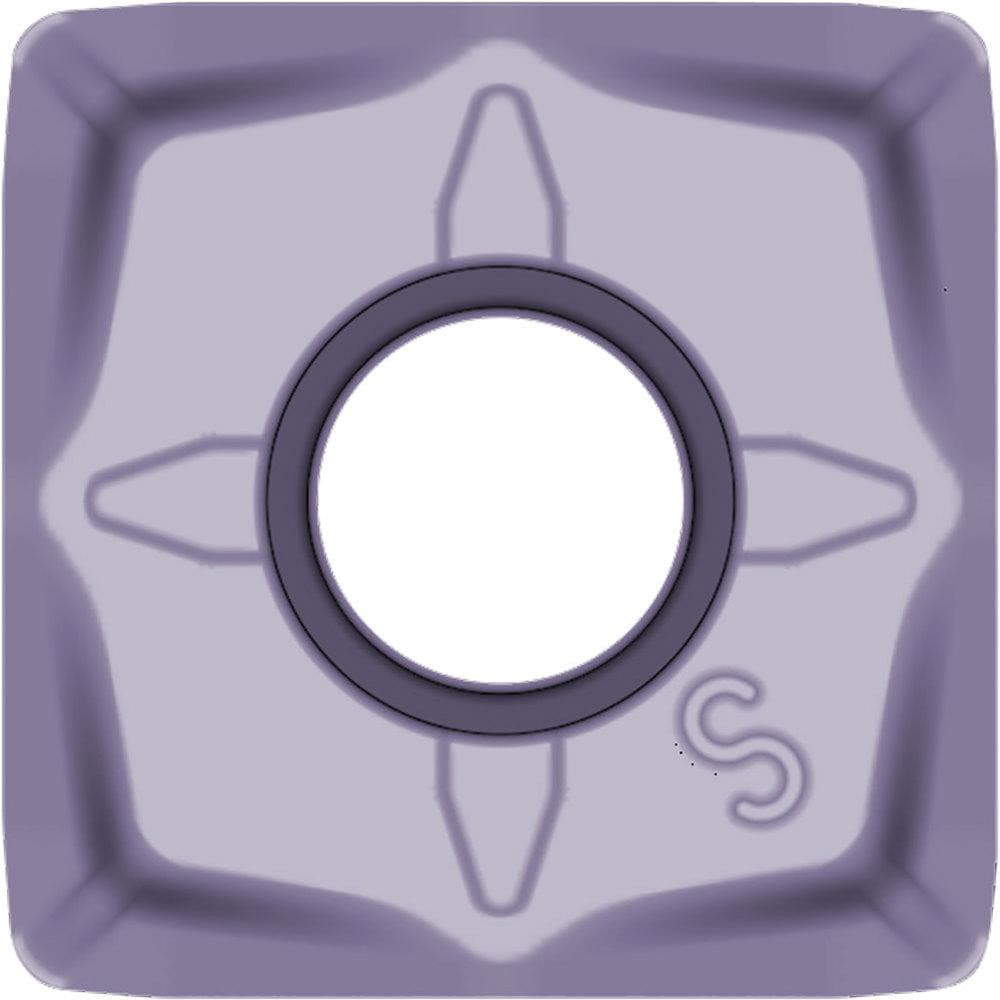

Milling Insert: SNMU130508EN-SM PR1825, Carbide
Item #: 86474673
Brand: Kyocera
Model #: TLT00135
Product Specifications
| Insert Style | SNMU |
| Insert Size | 130508 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Manufacturer Grade | PR1825 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2169 |
| Thickness (mm) | 5.5100 |
| Coating/Finish | MEGACOAT NANO EX |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Inscribed Circle (mm) | 13.00 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Neutral |
| Series | MFSN Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.7000 |
| Hole Diameter (Decimal Inch) | 0.1850 |
| Rake | Negative |
| Primary Workpiece Material | Mold Steel; Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Austenitic Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | SNMU130508ENSMPR1825 |
| Iso Code | SNMU130508EN-SM |
| Cutting Edge Style | Low Cutting Force; Honed |
| Manufacturers Catalog Number | SNMU130508ENSMPR1825 |
| Chip Breaker | EN-SM |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Multi-Use Tool | No |
| Country of Origin | Japan |
