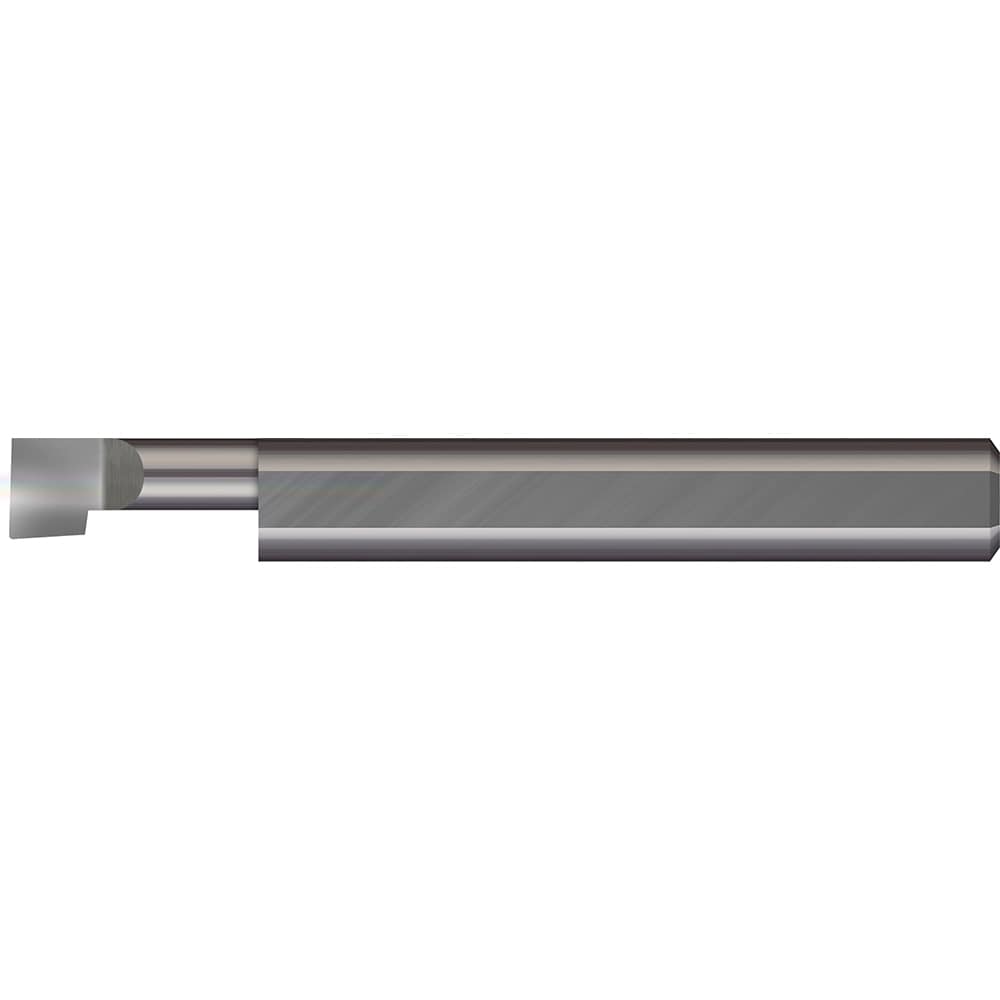

Boring Bars; Boring Bar Type: Boring; Cutting Direction: Right Hand; Minimum Bore Diameter (Decimal Inch): 0.1760; Material: Solid Carbide; Maximum Bore Depth (Decimal Inch): 1.2500; Projection (Decimal Inch): 0.0400
Item #: 84679398
Brand: Micro 100
Model #: BB6-1601250
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.1760 |
| Material | Solid Carbide |
| Maximum Bore Depth (Decimal Inch) | 1.2500 |
| Projection (Decimal Inch) | 0.0400 |
| Shank Diameter (Inch) | 3/16 |
| Overall Length (Inch) | 2-1/2 |
| Series | Standard - Boring Tools - Right Hand |
| Maximum Bore Depth (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 2.5000 |
| Through Coolant | No |
| UNSPSC Code | 23241601 |
| Country of Origin | UNITED STATES |
