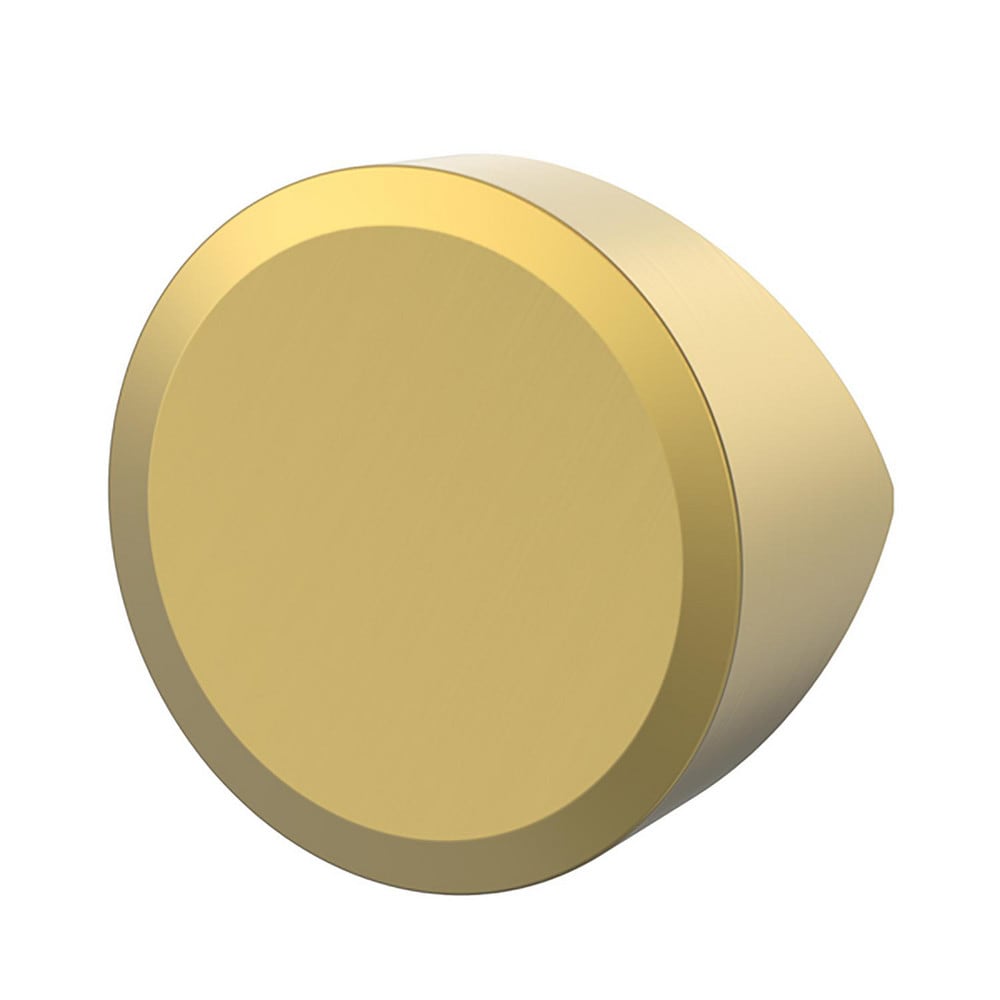

Turning Insert: RCGX45S0825 KYHK15B, Ceramic
Item #: 26176446
Brand: Kennametal
Model #: 6770871
Product Specifications
| ANSI Insert Code | RCGX45 |
| ISO Insert Code | RCGX120700 |
| Relief Angle | 7 |
| Insert Style | RCGX |
| Corner Radius (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Included Angle | 360 |
| Manufacturer Grade | KYHK15B |
| Coating/Finish | AlTiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/16 |
| Insert Thickness (Decimal Inch) | 0.3125 |
| Series | KENDEX |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Material | Ceramic |
| Insert Shape | R - Round |
| Chip Breaker Operation | Flat Top |
| Side Clearance | Positive |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | R |
| Maximum Depth of Cut (Decimal Inch) | 0.1665 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1/2 |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.5000 |
| Insert Length (Inch) | 1/2 |
| Primary Workpiece Material | Hard Material; Cast Iron; Superalloys & Titanium |
| Primary Workpiece Material Code | S; H; K |
| Iso Code | RCGX120700S02025 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6770871 |
| Material Grade | Alumina TiCN |
| Coating Classification | PVD |
| Chip Breaker | Flat Top |
| Rake Angle | 0 |
| Cutting Edge Style | Honed; Chamfered |
| Industry Standard Number | RCGX45S0825 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Full Radius | Yes |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 45 |
| ISO Size Code | 120700 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 45 |
