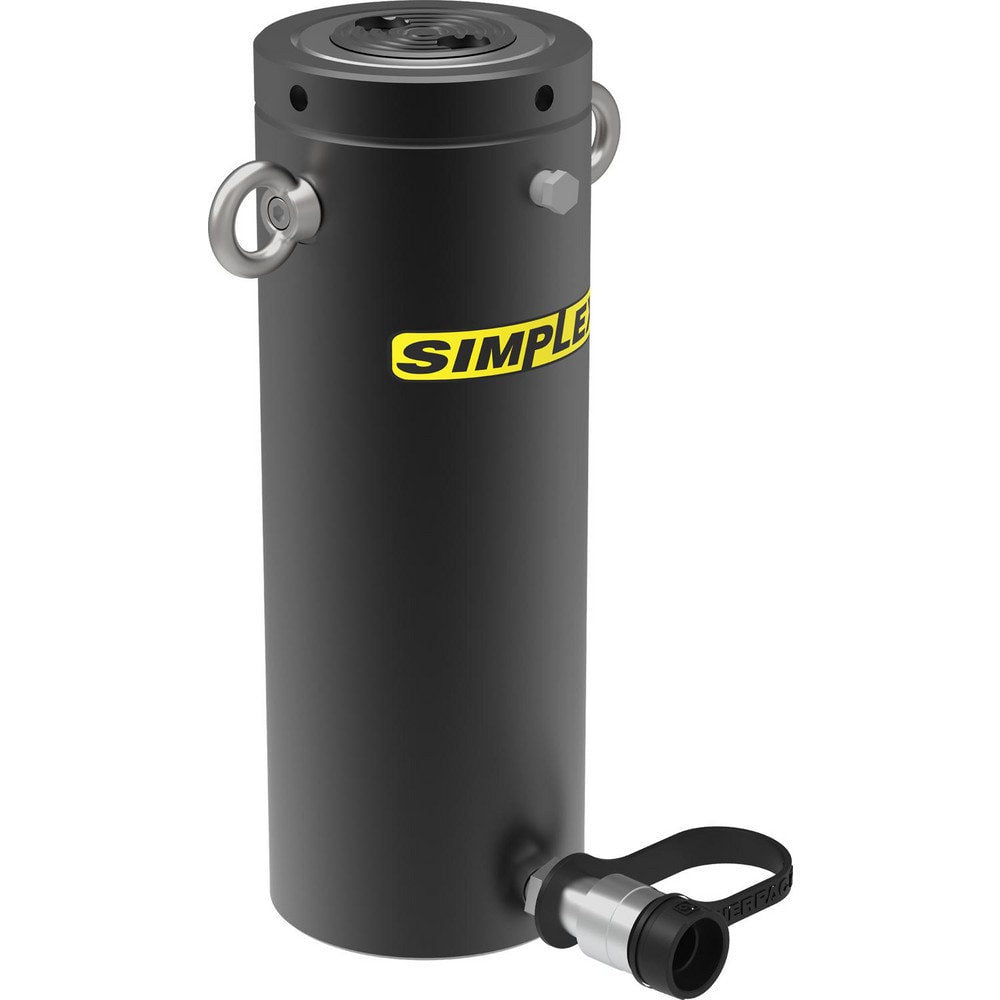

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 55; Stroke Length: 9.84; Oil Capacity: 108.14; Cylinder Bore Diameter (Decimal Inch): 3.74; Cylinder Effective Area: 1; Lowered Height: 14.41
Item #: 72644362
Brand: Enerpac
Model #: RCL5010
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 55 |
| Stroke Length | 9.84 |
| Oil Capacity | 108.14 |
| Cylinder Bore Diameter (Decimal Inch) | 3.74 |
| Cylinder Effective Area | 1 |
| Lowered Height | 14.41 |
| Retracted Length | 14 |
| Extended Length | 24.25 |
| Cushion Type | No Cushion |
| Bore Diameter | 3.7400 |
| Outside Diameter | 4.92 in |
| Maximum Working Pressure | 10150.000 |
| Body Material | Steel |
| Saddle Diameter | 1.97 |
| Series | RCL |
| Maximum Height (Inch) | 24.2500 |
| UNSPSC Code | 27121602 |
| Actuation | Single Acting |
| Load Capacity | 55 |
| Stroke Length | 9.84 |
| Oil Capacity | 108.14 |
| Cylinder Bore Diameter (Decimal Inch) | 3.74 |
| Cylinder Effective Area | 1 |
| Lowered Height | 14.41 |
| Retracted Length | 14 |
| Extended Length | 24.25 |
| Cushion Type | No Cushion |
| Bore Diameter | 3.7400 |
| Outside Diameter | 4.92 in |
| Maximum Working Pressure | 10150.000 |
| Body Material | Steel |
| Saddle Diameter | 1.97 |
| Series | RCL |
| Maximum Height (Inch) | 24.2500 |
| UNSPSC Code | 27121602 |
| MSC Part # | 72644362 |
| Mfr Part # | RCL5010 |
| Country of Origin Country of Origin is subject to change | Spain |
