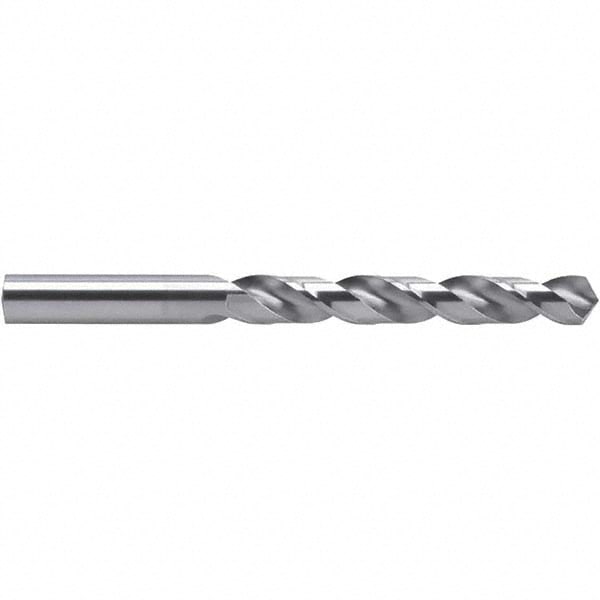

Jobber Drill: 9.70 mm Dia, 118 deg Point, Cobalt
Item #: 55075626
Brand: Guhring
Model #: 9055230097000
Product Specifications
| Drill Bit Size (mm) | 9.70 |
| Drill Bit Size (Decimal Inch) | 0.3819 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Straw |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | 4 Facet |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Shank Diameter (Decimal Inch) | 0.3819 |
| Overall Length (mm) | 133.00 |
| Overall Length (Decimal Inch) | 5.2362 |
| Spiral Type | Regular |
| Flute Length (mm) | 87.00 |
| Flute Length (Decimal Inch) | 3.4252 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 9.7 |
| Drill Bit Diameter Tolerance | +0.000 to -0.022 mm |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.3500 - 0.4000 |
| Drill Bit Size Range (mm) | 9.00 - 10.00 |
| Material Grade | M35 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Drill Bit Size (mm) | 9.70 |
| Drill Bit Size (Decimal Inch) | 0.3819 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 118 |
| Coating/Finish | Straw |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | 4 Facet |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Cast Iron; Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Shank Diameter (Decimal Inch) | 0.3819 |
| Overall Length (mm) | 133.00 |
| Overall Length (Decimal Inch) | 5.2362 |
| Spiral Type | Regular |
| Flute Length (mm) | 87.00 |
| Flute Length (Decimal Inch) | 3.4252 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 9.7 |
| Drill Bit Diameter Tolerance | +0.000 to -0.022 mm |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.3500 - 0.4000 |
| Drill Bit Size Range (mm) | 9.00 - 10.00 |
| Material Grade | M35 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| MSC Part # | 55075626 |
| Mfr Part # | 9055230097000 |
| Country of Origin Country of Origin is subject to change | Germany |
