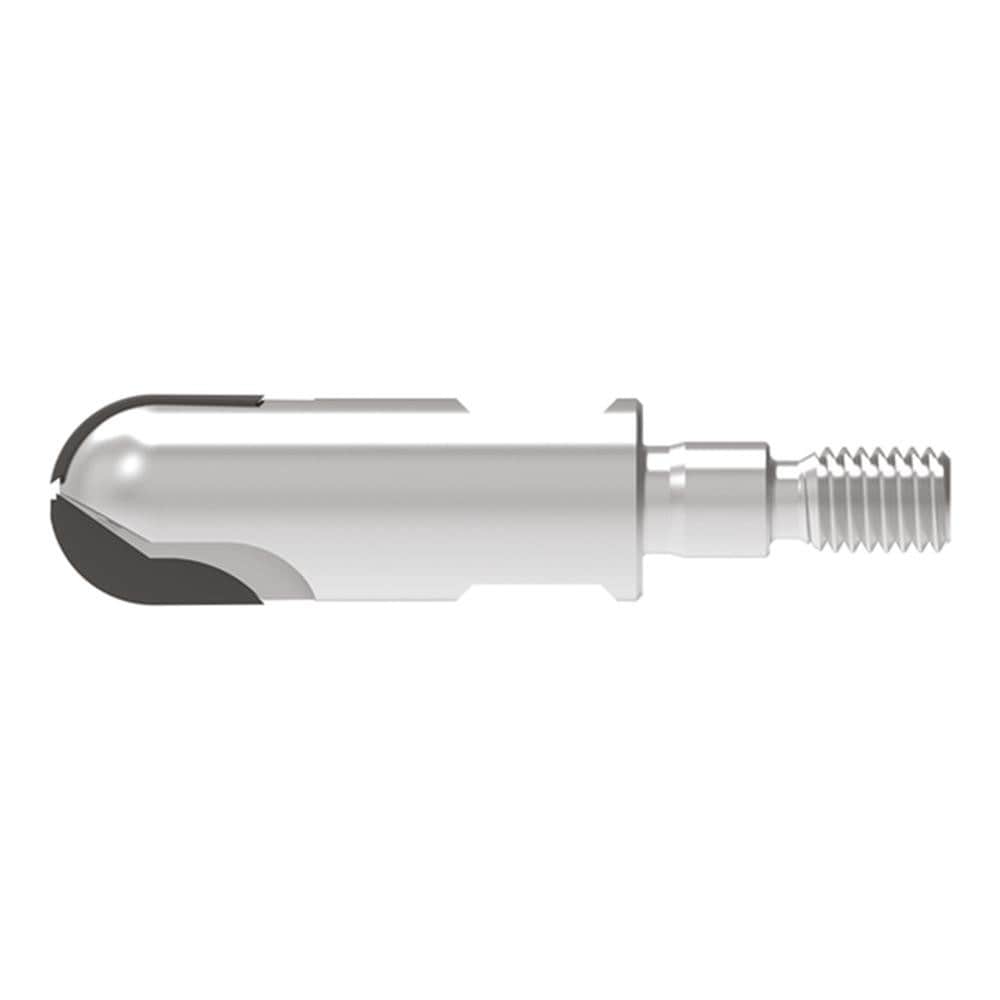

Ball End Mill Heads; Mill Diameter (mm): 10.00; Mill Diameter (Decimal Inch): 0.4000; Length of Cut (mm): 10.0000; Connection Type: SAM
Item #: 63288187
Brand: WNT
Model #: 5001701000
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Mill Diameter (Decimal Inch) | 0.4000 |
| Length of Cut (mm) | 10.0000 |
| Connection Type | SAM |
| Overall Length (mm) | 42.5000 |
| Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Variable |
| Helix Angle | 4 |
| Series/List | MUC |
| Undercutting | No |
| Number Of Flutes | 2 |
| Finish Coating | PCD |
| UNSPSC Code | 27112803 |
| Mill Diameter (mm) | 10.00 |
| Mill Diameter (Decimal Inch) | 0.4000 |
| Length of Cut (mm) | 10.0000 |
| Connection Type | SAM |
| Overall Length (mm) | 42.5000 |
| Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Variable |
| Helix Angle | 4 |
| Series/List | MUC |
| Undercutting | No |
| Number Of Flutes | 2 |
| Finish Coating | PCD |
| UNSPSC Code | 27112803 |
| MSC Part # | 63288187 |
| Mfr Part # | 5001701000 |
| Country of Origin Country of Origin is subject to change | Germany |
