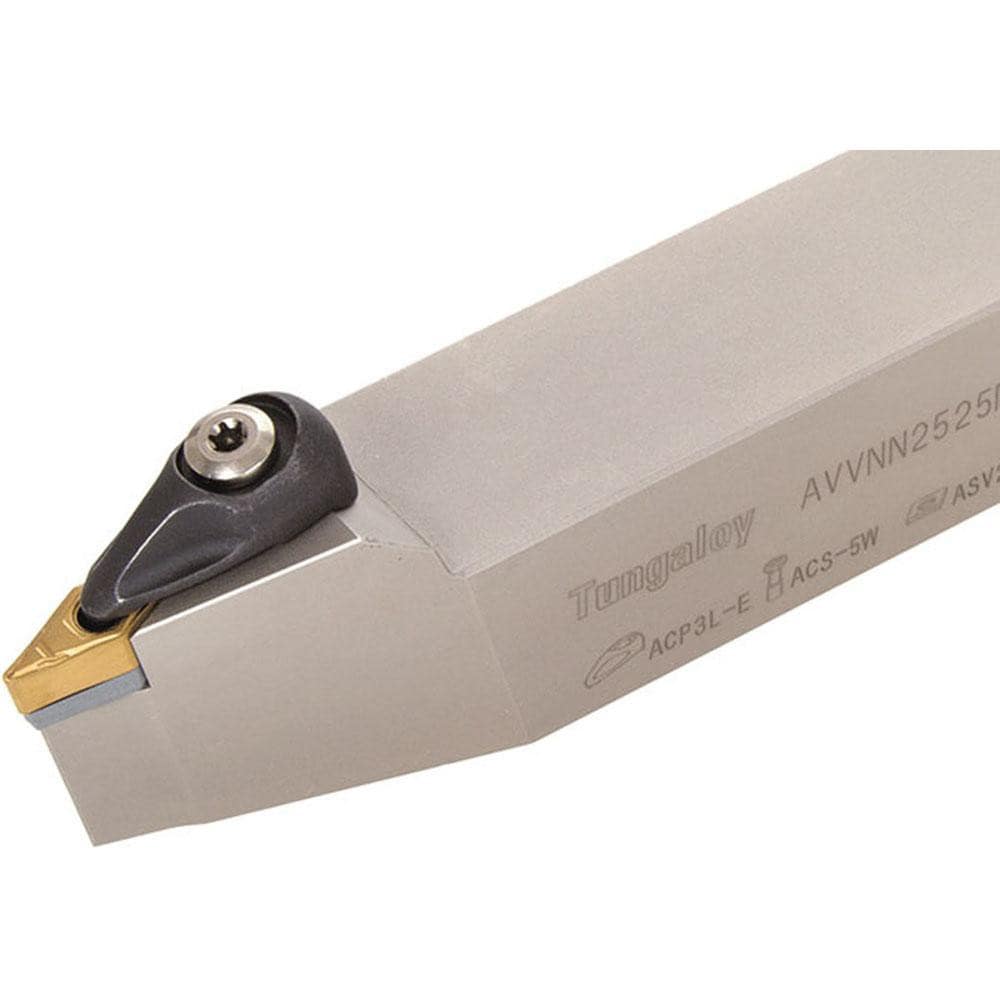

Indexable Turning Toolholder: AVVNN2020K1204-A, 72.500 deg Lead Angle, Clamp
Item #: 63266092
Brand: Tungaloy
Model #: 6751006
Product Specifications
| Toolholder Style | AVVN |
| Hand of Holder | Neutral |
| Lead Angle | 72.500 |
| Insert Compatibility | VN..2.33. |
| Insert Holding Method | Clamp |
| Shank Width (mm) | 20.00 |
| Shank Height (mm) | 20.00 |
| Rake | Negative |
| Cutting Direction | Neutral |
| Compatible Insert Size Code | VN..2.33. |
| Multi-use Tool | Yes |
| Series | AVVN |
| Cutting Tool Application | Facing; Turning |
| Head Length (mm) | 38.00 |
| Back of Bar to Cutting Edge (mm) | 10.00 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Decimal Inch) | 0.2810 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Toolholder Style | AVVN |
| Hand of Holder | Neutral |
| Lead Angle | 72.500 |
| Insert Compatibility | VN..2.33. |
| Insert Holding Method | Clamp |
| Shank Width (mm) | 20.00 |
| Shank Height (mm) | 20.00 |
| Rake | Negative |
| Cutting Direction | Neutral |
| Compatible Insert Size Code | VN..2.33. |
| Multi-use Tool | Yes |
| Series | AVVN |
| Cutting Tool Application | Facing; Turning |
| Head Length (mm) | 38.00 |
| Back of Bar to Cutting Edge (mm) | 10.00 |
| Primary Workpiece Material | Universal |
| Insert Inscribed Circle (Decimal Inch) | 0.2810 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| MSC Part # | 63266092 |
| Mfr Part # | 6751006 |
| Country of Origin Country of Origin is subject to change | Japan |
