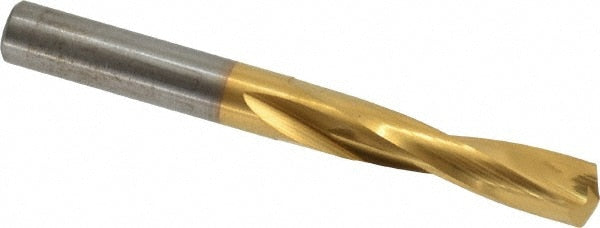

Screw Machine Length Drill Bit: 19/64" Dia, 135 deg Point, Solid Carbide
Item #: 51011591
Brand: Atrax
Model #: 460-102969A
Product Specifications
| Drill Bit Size (Inch) | 19/64 |
| Drill Bit Size (Decimal Inch) | 0.2969 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Number Of Flutes | 2 |
| Spiral Type | Slow |
| Flute Type | Slow Spiral |
| Drill Point Angle | 135 |
| Coolant Through | No |
| Point Type | Split Point |
| Shank Type | Straight |
| Overall Length (Decimal Inch) | 2.7500 |
| Overall Length (Inch) | 2-3/4 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Proprietary Coating/Finish | TiN |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Flute Length (Decimal Inch) | 1.5625 |
| Flute Length (Inch) | 1-9/16 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| UNSPSC Code | 23241635 |
| Drill Bit Size (Inch) | 19/64 |
| Drill Bit Size (Decimal Inch) | 0.2969 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Number Of Flutes | 2 |
| Spiral Type | Slow |
| Flute Type | Slow Spiral |
| Drill Point Angle | 135 |
| Coolant Through | No |
| Point Type | Split Point |
| Shank Type | Straight |
| Overall Length (Decimal Inch) | 2.7500 |
| Overall Length (Inch) | 2-3/4 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Proprietary Coating/Finish | TiN |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Flute Length (Decimal Inch) | 1.5625 |
| Flute Length (Inch) | 1-9/16 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
| UNSPSC Code | 23241635 |
| MSC Part # | 51011591 |
| Mfr Part # | 460-102969A |
| Big Book Page # | 111 |
