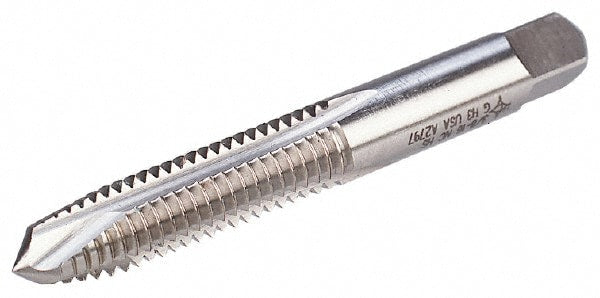

Spiral Point Tap: 5/16-24 UNF, 3 Flutes, Plug Chamfer, 2B Class of Fit, HSS, Bright/Uncoated Coated
Item #: 40214405
Brand: Cleveland
Model #: C57164
Product Specifications
| Thread Size (Inch) | 5/16-24 |
| Thread Standard | UNF |
| Chamfer | Plug |
| Material | HSS |
| Thread Limit | H4 |
| Class Of Fit | 2B |
| Coating/Finish | Bright/Uncoated |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Material Application | Non-Ferrous Metal; Steel |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 24 |
| Overall Length (Inch) | 2-23/32 |
| Thread Pitch (Decimal Inch) | 0.0417 |
| Overall Length (Decimal Inch) | 2.7188 |
| Overall Length (mm) | 69.06 |
| Thread Length (Decimal Inch) | 0.6875 |
| Thread Length (Inch) | 11/16 |
| Thread Length (mm) | 28.58 |
| Shank Diameter (mm) | 8.08 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Application | Through-Hole Threading |
| Neck Length (Decimal Inch) | 0.4500 |
| Measurement Type | Fractional Inch |
| Square Size (mm) | 6.05 |
| Series | 1011 |
| Style | Spiral Point |
| UNSPSC Code | 23241600 |
| Thread Size (Inch) | 5/16-24 |
| Thread Standard | UNF |
| Chamfer | Plug |
| Material | HSS |
| Thread Limit | H4 |
| Class Of Fit | 2B |
| Coating/Finish | Bright/Uncoated |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Material Application | Non-Ferrous Metal; Steel |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 24 |
| Overall Length (Inch) | 2-23/32 |
| Thread Pitch (Decimal Inch) | 0.0417 |
| Overall Length (Decimal Inch) | 2.7188 |
| Overall Length (mm) | 69.06 |
| Thread Length (Decimal Inch) | 0.6875 |
| Thread Length (Inch) | 11/16 |
| Thread Length (mm) | 28.58 |
| Shank Diameter (mm) | 8.08 |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Application | Through-Hole Threading |
| Neck Length (Decimal Inch) | 0.4500 |
| Measurement Type | Fractional Inch |
| Square Size (mm) | 6.05 |
| Series | 1011 |
| Style | Spiral Point |
| UNSPSC Code | 23241600 |
| MSC Part # | 40214405 |
| Mfr Part # | C57164 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
