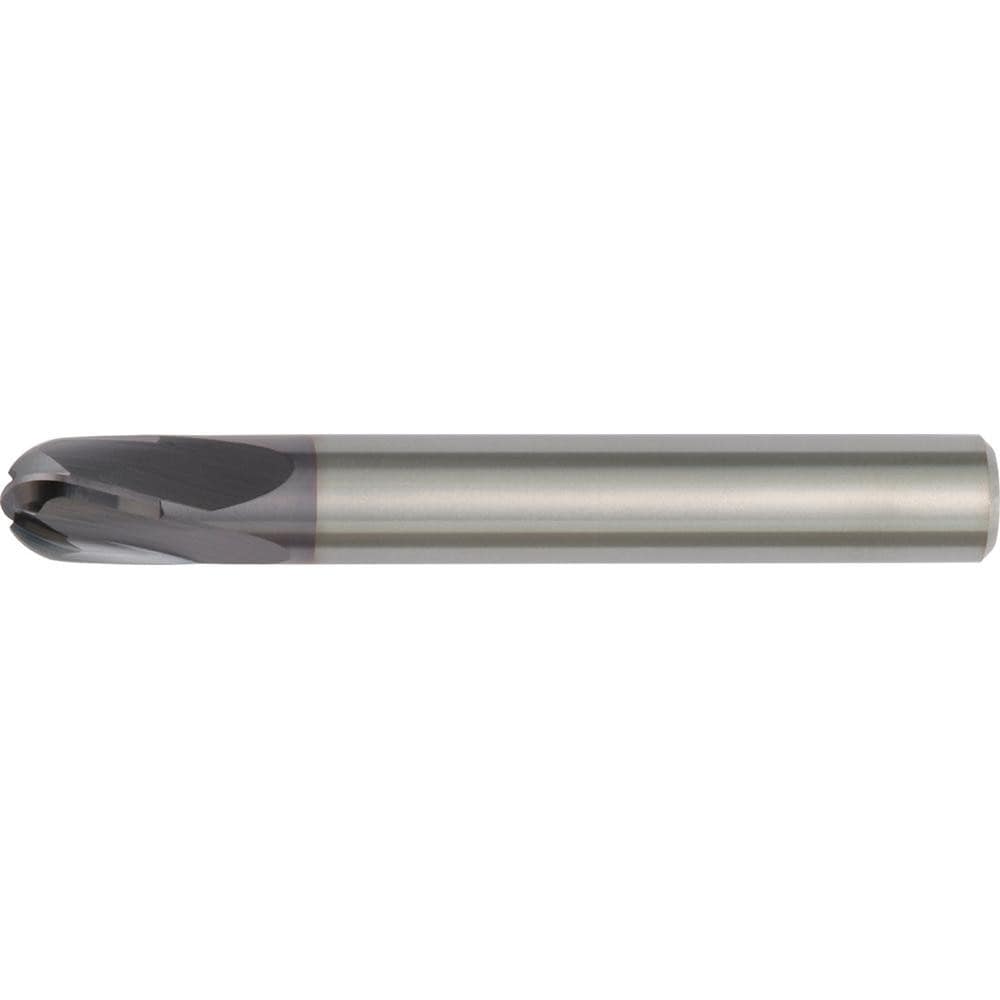

Ball End Mill: 8.00 mm Dia, 8.00 mm LOC, 4 Flute, Solid Carbide
Item #: 33981481
Brand: Widia
Model #: 1859908
Product Specifications
| Mill Diameter (mm) | 8.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 8.00 |
| Coating/Finish | AlTiN |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 15 |
| Overall Length (mm) | 63.00 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 - 0.4000 |
| Length Type | Standard |
| Helix Style | Low |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Shank Diameter (mm) | 8.00 |
| Nose Radius (mm) | 4.00 |
| Nose Radius (Decimal Inch) | 4.0000 |
| Reach Length (mm) | 8.00 |
| Maximum Helix Angle | 15 |
| Minimum Helix Angle | 15 |
| Primary Workpiece Material | Hard Material; Steel |
| Primary Workpiece Material Code | P; H |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Material Grade | WU10PE |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 7150 |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Normal |
| Coolant Through | No |
| Manufacturers Catalog Number | 715008003RT |
| System Of Measurement | Metric |
