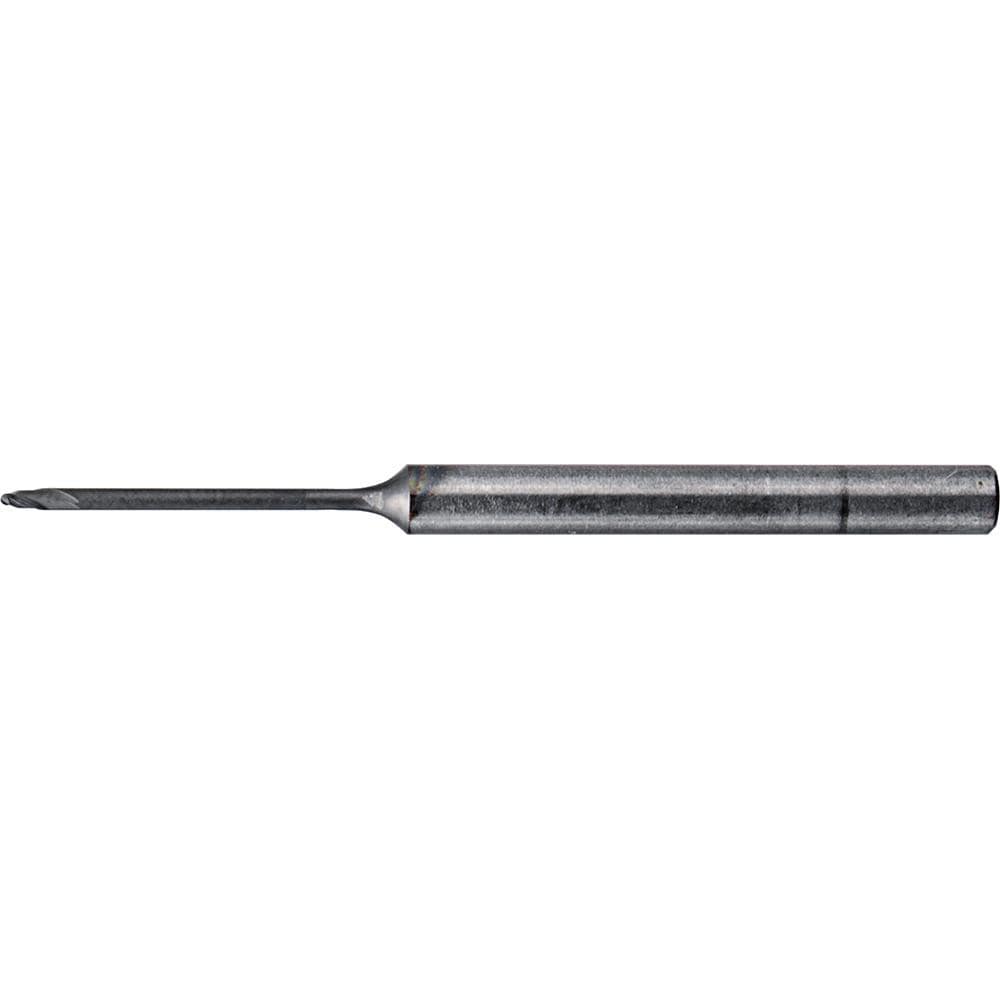

Brand: Widia / Part #: 3665164
Item #: 98264484
Brand: Widia
Model #: 3665164
Product Specifications
| Mill Diameter (mm) | 1.50 |
| Length of Cut (mm) | 2.4000 |
| End Mill Material | Carbide |
| Coating/Finish | TiAlN |
| Chipbreaker | No |
| Number Of Flutes | 2 |
| End Type | Ball |
| Extended Reach | Yes |
| Helix Angle | 30 |
| Variable Index | No |
| Variable Helix | No |
| Length Type | Regular |
| Helix Style | Low |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 4.0000 |
| Neck Diameter (mm) | 1.440 |
| Nose Radius (Decimal Inch) | 0.0295 |
| Neck Length (mm) | 13.60 |
| Reach Length (mm) | 16.00 |
| Overall Length (mm) | 63.0000 |
| Maximum Helix Angle | 30 |
| Minimum Helix Angle | 30 |
| Primary Workpiece Material | Hard Material; Steel |
| Primary Workpiece Material Code | P; H |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Material Grade | WU10PE |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 7N21 |
| Flute Type | Helical |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Cylindrical |
| Pitch | Normal |
| Coolant Through | No |
