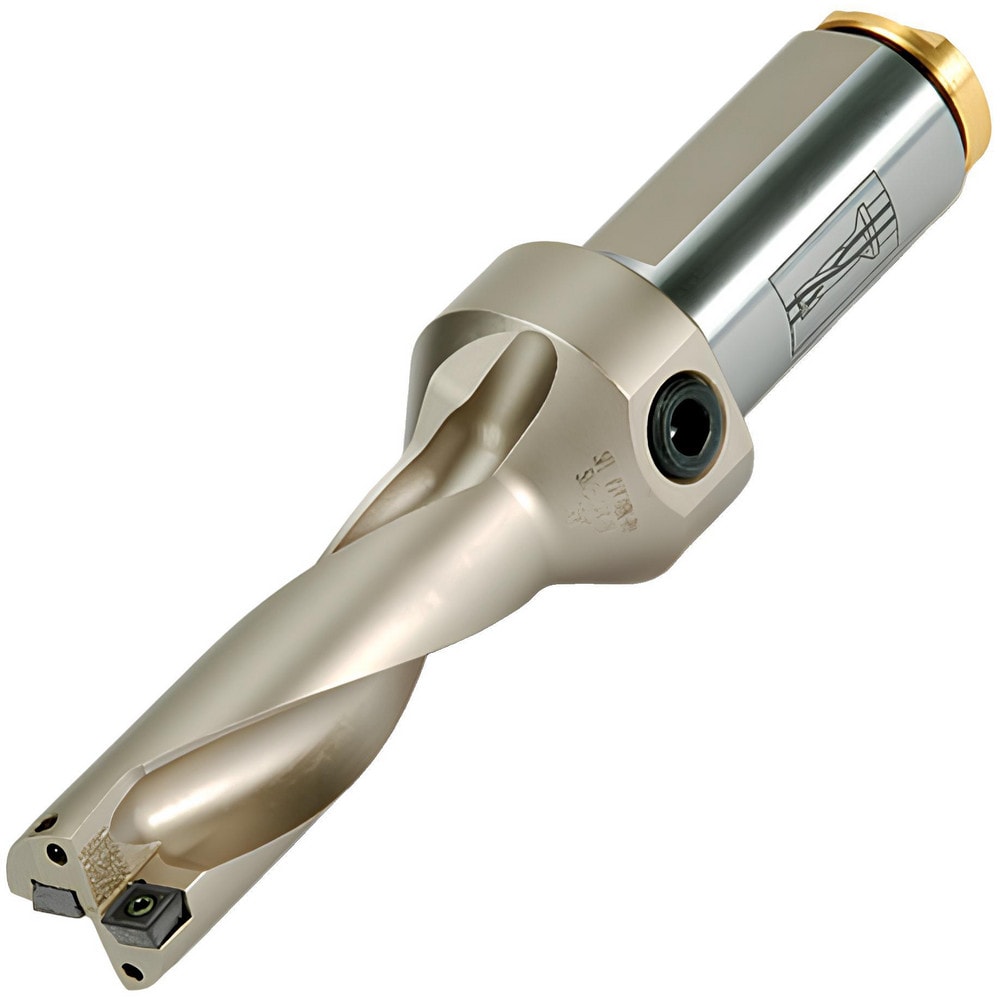

Indexable Insert Drill: Q0460138N7R01, 1.8530" Max Dia, 5.4400" Max Depth, 3xD, 1.5000" Shank Dia
Item #: 09950874
Brand: Ingersoll Cutting Tools
Model #: 3240496
Product Specifications
| Compatible Drill Style | Q |
| Maximum Drill Diameter (Decimal Inch) | 1.8530 |
| Maximum Drill Depth (Decimal Inch) | 5.4400 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Tool Material | Steel |
| Compatible Insert Style | SPLT |
| Compatible Insert Size Code | 140508 |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 3- Axial Concentric & Radial |
| Overall Length (Decimal Inch) | 10.2800 |
| Series | Quad Drill |
| Flute Length (Decimal Inch) | 5.4400 |
| Body Length (Decimal Inch) | 7.5200 |
| Shank Length (Decimal Inch) | 2.7600 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Insert Size (Decimal Inch) | 0.5630 |
| UNSPSC Code | 23291503 |
| Insert Compatibility | SPLT 140508N-PH |
| Collar Diameter (Decimal Inch) | 2.3600 |
| Insert Lock Screw | SM50-122-50 |
| Coolant Through | Yes |
