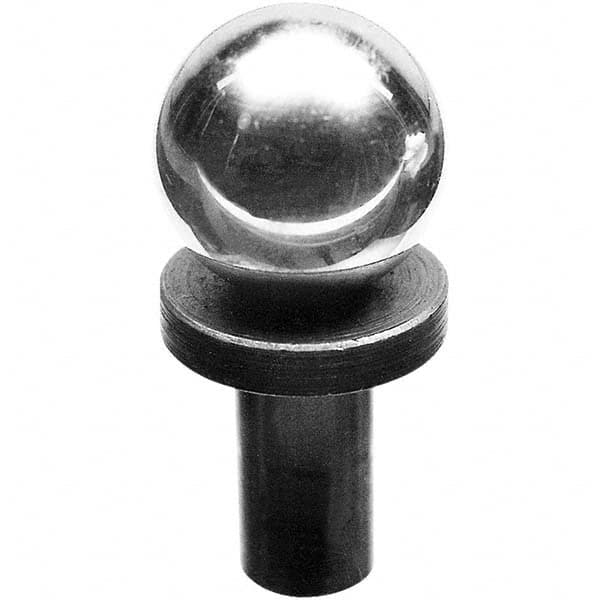

1/4″ Ball Diam, 1/8″ Shank Diam, Stainless Steel Inspection Tooling Ball Slip-Fit Shank, with Shoulder, Breakaway
Item #: 31741051
Brand: TE-CO
Model #: 10850
Product Specifications
| Tooling Ball Style | Inspection |
| Shoulder | Yes |
| Break-Away | Yes |
| Material | Stainless Steel |
| Ball Diameter (mm) | 0.25 in |
| Ball Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (mm) | 0.1247 in |
| Shank Tolerance | 0.0002 in |
| Ball Tolerance | +0.0002 in |
| Shoulder Diameter | 0.25 in |
| Ball & Shank Concentricity | 0.0002 in |
| Ball Center To Shoulder Bottom | 0.0002 in |
| Shank Attachment Type | Slip-Fit |
| Shoulder Diameter (Decimal Inch) | 0.25 in; 0.2500 |
| Tapped Shank | No |
