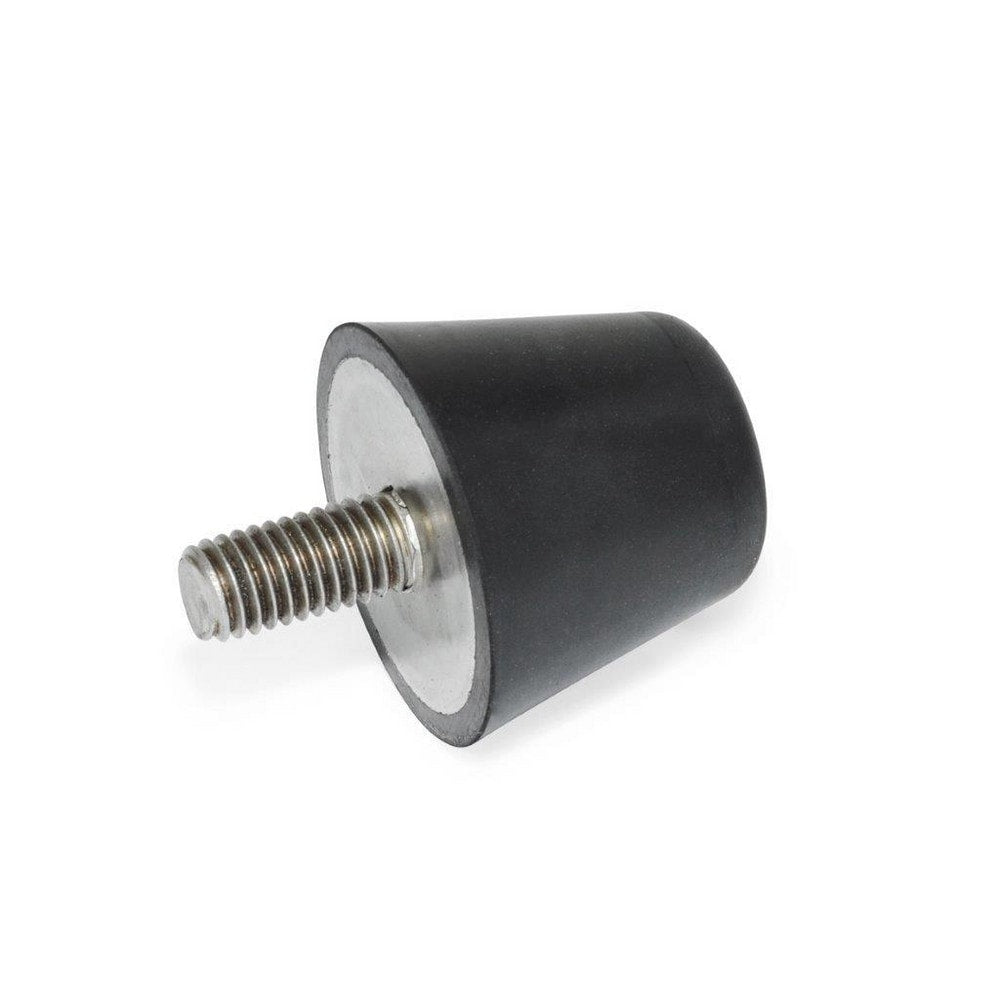

Vibration Isolators; Isolator Type: Plate/Stud; Insert Material: Stainless Steel; Isolator Material: Perbunan (NBR); Maximum Load Capacity: 910.00 N; Top Diameter: 32.00; Bottom Diameter: 21; Thread Size: 5/16-18; Overall Width: 32 mm
Item #: 71808174
Brand: J.W. Winco
Model #: 254-32-5/16X18-15.9-55
Product Specifications
| Isolator Type | Plate/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Perbunan (NBR) |
| Maximum Load Capacity | 910.00 N |
| Top Diameter | 32.00 |
| Bottom Diameter | 21 |
| Thread Size | 5/16-18 |
| Overall Width | 32 mm |
| Overall Diameter | 32 mm |
| Thread Length (Decimal Inch) | 0.6300 |
| Deflection | 0.2600 |
| Hardness Rating | Shore 55A |
| Mount Type | Threaded Stud |
| Shape | Round |
| Thread Pitch | 1.411 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 41.9 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Plate/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Perbunan (NBR) |
| Maximum Load Capacity | 910.00 N |
| Top Diameter | 32.00 |
| Bottom Diameter | 21 |
| Thread Size | 5/16-18 |
| Overall Width | 32 mm |
| Overall Diameter | 32 mm |
| Thread Length (Decimal Inch) | 0.6300 |
| Deflection | 0.2600 |
| Hardness Rating | Shore 55A |
| Mount Type | Threaded Stud |
| Shape | Round |
| Thread Pitch | 1.411 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 41.9 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 71808174 |
| Mfr Part # | 254-32-5/16X18-15.9-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
