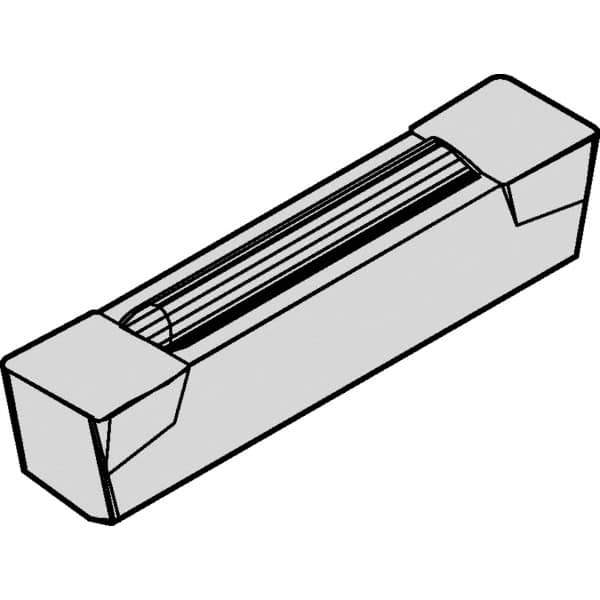

Kennametal - 8A4 Grade KYS30, 8mm Cutting Width Ceramic-SI Grooving Insert - 6mm Max Depth of Cut, Neutral, 0.031" Corner Radius, Uncoated
Item #: 31679897
Brand: Kennametal
Model #: 5895568
Exact Tooling IR#: 04
Features and Benefits
Ceramic-SI is a silicon based material that reinforces the ceramic for better resistance to abrasion, shock and toughness. It is commonly used at high speeds on steel, cast and ductile iron and aerospace materials.
| Product Specifications | |
|---|---|
| Insert Style | A4 |
| Insert Size | 8 |
| Material | Ceramic-SI |
| Cutting Width (mm) | 8.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Manufacturer's Grade | KYS30 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 6.80 |
| Relief Angle | 2.25 |
| Insert Seat Size | 8 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Coating Process | Uncoated |
| Series | A4 |
| Insert Thickness (Decimal Inch) | 0.2670 |
