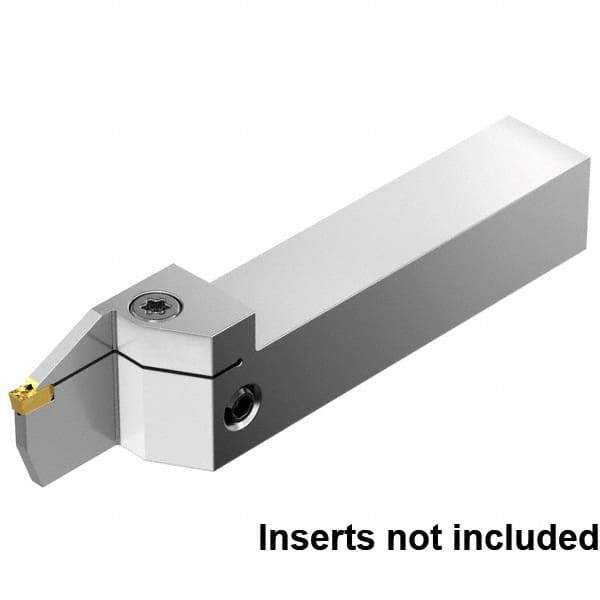

Kennametal - External Thread, 16mm Max Cut of Depth, 2mm Min Groove Width, 6" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, EG0200M02P02 Insert Style, EVSM Toolholder Style, Series EVSM
Item #: 31582166
Brand: Kennametal
Model #: 6401888
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 16.00 |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (mm) | 2.00 |
| Overall Length (Inch) | 6 |
| Series | EVSM |
| Toolholder Style | EVSM |
| Insert Compatibility | EG0200M02P02 |
| Shank Height (Inch) | 1 |
| Shank Width/Diameter (Inch) | 1 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9620 |
| Head Height (mm) | 33.65 |
| Head Length (mm) | 35.30 |
| Shank Length (mm) | 117.10 |
| Manufacturers Catalog Number | EVSML160216C |
| Complete Insert Compatibility | EG0200M02P02 |
