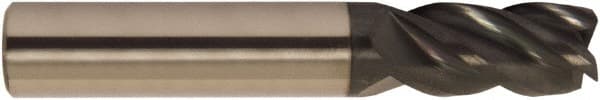

Corner Radius End Mill: 1/4″ Dia, 3/8″ LOC, 0.09″ Radius, 4 Flutes, Solid Carbide 2″ OAL, 1/4″ Shank Dia, 38 ° Helix, AlTiCrN Coated, Corner Radius End, Centercutting, Series HS
Item #: 31489875
Brand: Accupro
Model #: 6504336
Product Specifications
| Mill Diameter (Decimal Inch) | 0.2500 |
| Mill Diameter (Inch) | 1/4 |
| Length of Cut (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0900 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Extended Reach | No |
| End Type | Corner Radius |
| Flute Type | Spiral |
| Helix Angle | 38 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Corner Radius Tolerance | +0.00200 to -0.00200 in |
| Mill Diameter Tolerance | +0.000000 to -0.001000 in |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | HS |
| Product Service Code | 3455 |
| Single Or Double End | Single |
| Coating/Finish | AlTiCrN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3750 |
