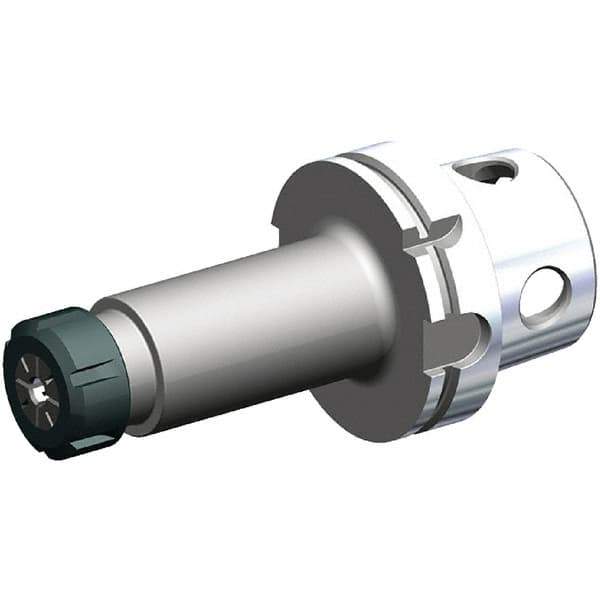

Kennametal - 1mm to 16mm Capacity, 65mm Projection, Modular Connection, ER25 Collet Chuck - 96.95mm OAL, 63mm Shank Diam
Item #: 31454317
Brand: Kennametal
Model #: 5552280
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 63.00 |
| Modular Connection Size | KM4X63 |
| Projection (mm) | 65.00 |
| Through Coolant | Yes |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 16.00 |
| Overall Length (mm) | 96.95 |
| Type | Collet Chuck |
| Shank Length (mm) | 31.95 |
| Nose Diameter (mm) | 42.00 |
| PSC Code | 5136 |
