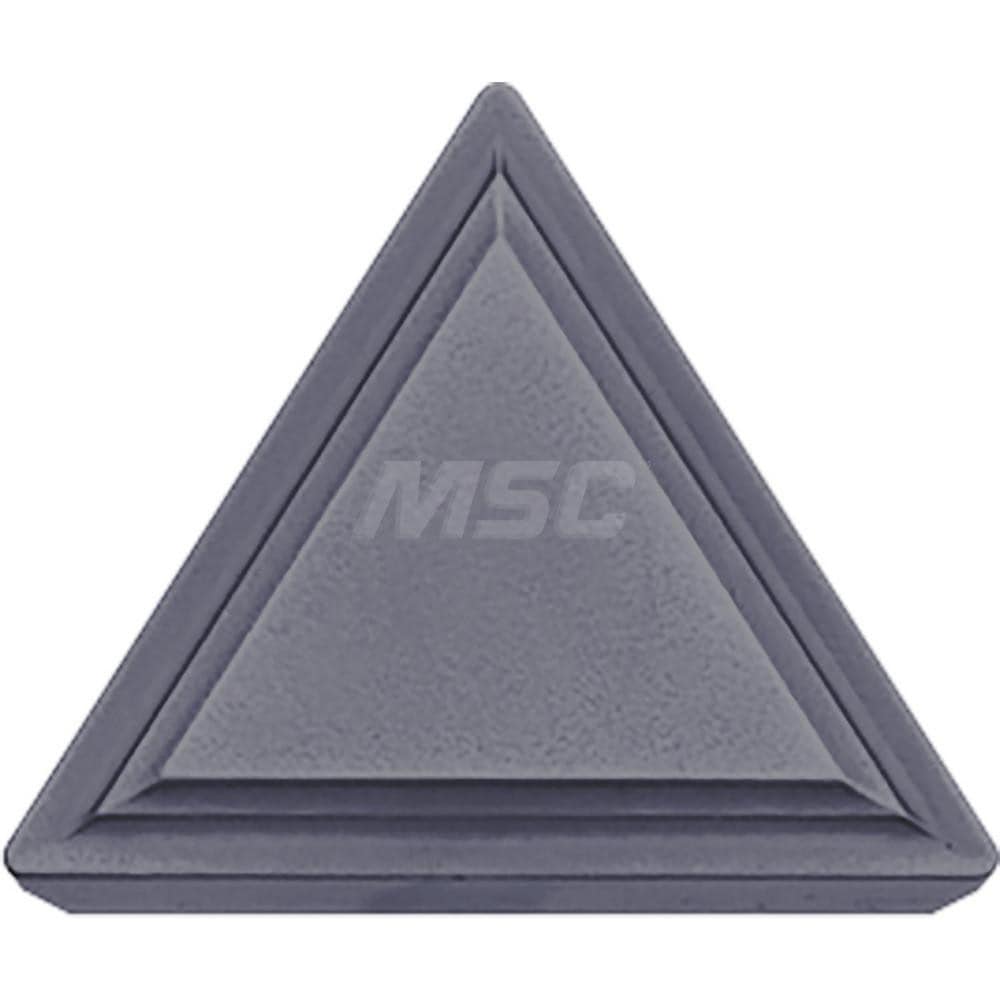

Turning Insert: TPMR222 PR1535, Carbide
Item #: 18260521
Brand: Kyocera
Model #: TLC40098
Product Specifications
| ANSI Insert Code | TPMR222 |
| ISO Insert Code | TPMR110308 |
| Relief Angle | 11 |
| Insert Style | TPMR |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 60 |
| Manufacturer Grade | PR1535 |
| Coating/Finish | MEGACOAT NANO |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Maximum Depth of Cut (Decimal Inch) | 0.1445 |
| Insert Holding Method | Clamp |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4334 |
| Primary Workpiece Material | Superalloy; Stainless Steel |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | TPMR110308 |
| Manufacturers Catalog Number | TLC40098 |
| Material Grade | S20; S30; M40; M30 |
| Coating Classification | PVD |
| Industry Standard Number | TPMR222PR1535 |
| Width (Decimal Inch - 4 Decimals) | 0.4334 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Back Boring; Copying; Internal Facing; Boring |
| ANSI Size Code | 222 |
| ISO Size Code | 110308 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 222 |
