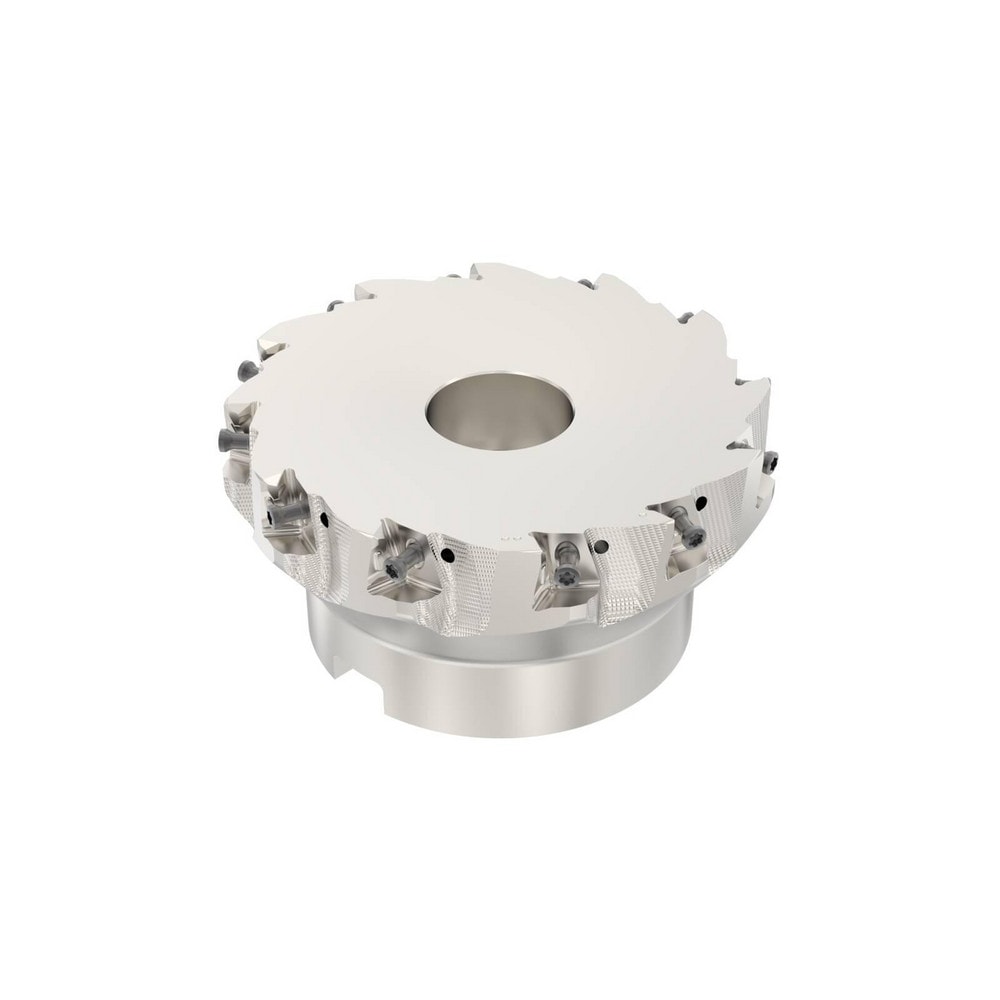

Indexable Square-Shoulder Face Mill: R220.9405.00LO1212A, 5'' Cut Dia, 1.5000" Arbor Hole Dia, 0.4724" Max Cutting Depth
Item #: 87005740
Brand: Seco
Model #: 10207998
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 5.0000 |
| Minimum Cutting Diameter (Inch) | 5 |
| Maximum Cutting Diameter (Inch) | 5 |
| Maximum Cutting Diameter (Decimal Inch) | 5.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | 1207.. |
| Cutter Style | R220.94 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative |
| Series | R220.94 |
| Maximum Ramping Angle | 0 |
| Maximum Body Diameter (Decimal Inch) | 5.0000 |
| Overall Height (Decimal Inch) | 2.4803 |
| Keyway Width (Decimal Inch) | 0.6299 |
| Hub Diameter (Decimal Inch) | 3.5433 |
| Pitch Type | Normal |
| Maximum RPM | 6200.000 |
| Tool Application | Slotting; Shouldering |
| Tool Performance | General Purpose |
| Standards | ISO; ANSI |
| Number of Adjustable Pockets | 0 |
| Cutting Edge Length (Decimal Inch) | 0.4720 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |
| Complete Insert Compatibility | LOEX1207 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | 10207998 |
| Maximum Insert Radius (Decimal Inch) | 0.2480 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 12 |
| Number Of Flutes | 12 |
| Country of Origin | France |
