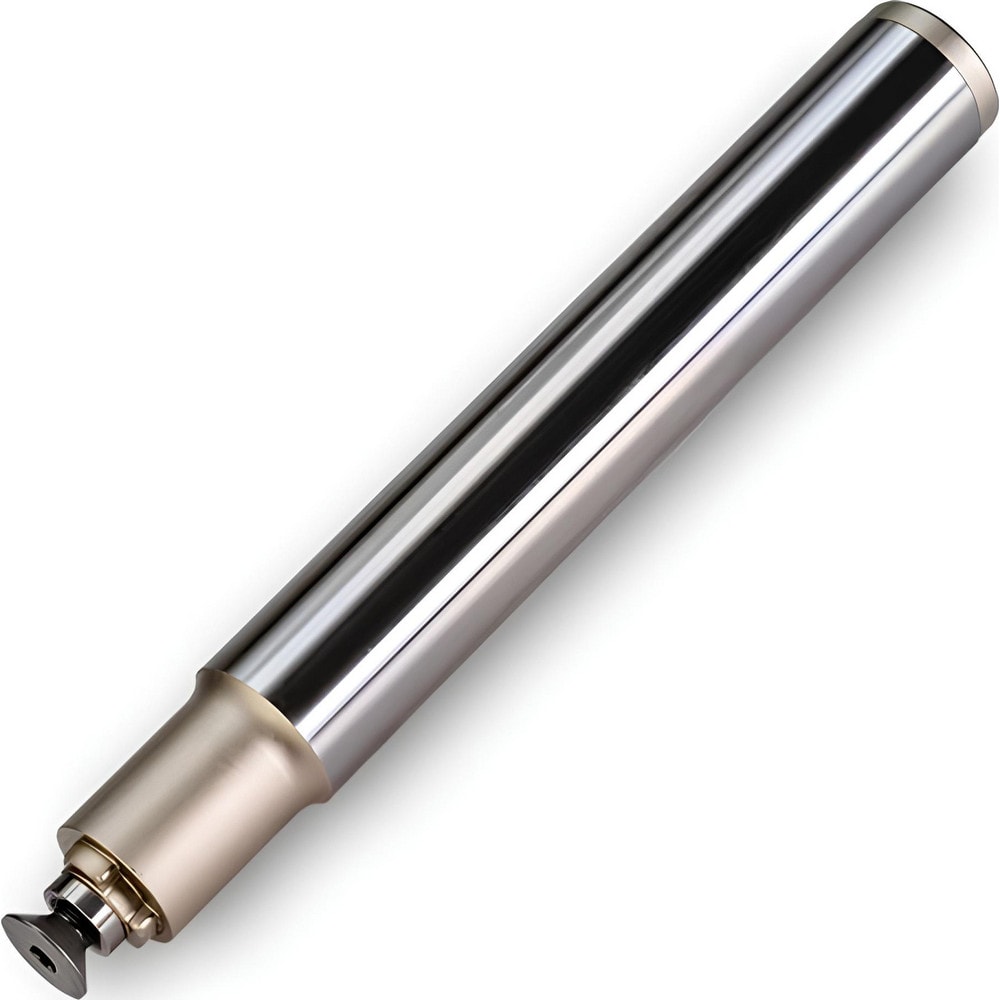

Brand: Ingersoll Cutting Tools / Part #: 6312346
Item #: 99338378
Brand: Ingersoll Cutting Tools
Model #: 6312346
Product Specifications
| Projection (mm) | 18.200 |
| Overall Length (mm) | 104.9000 |
| Neck Diameter (mm) | 15.000 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.0000 |
| Nose Diameter (Mm) ( - 2 Decimals) | 15.00 |
| Toolholder Style | S*L*SA |
| Tool Material | Steel |
| Series | S*L*SA |
| Tip Connection Size | LQ |
| Tool Application | Chamfering; Milling |
| Tool Performance | General Purpose |
| For Use With | Milling Tips |
| Weldon Flat | No |
| Effective Length (mm) | 16.00 |
| Extension Length (mm) | 18.20 |
| Shank Shape | Round |
| Thread Size Connection to Tip | LQ |
| Manufacturers Catalog Number | S016LQSA-18 |
| Type | "L" Style Thread Connection |
| Coolant Through | No |
