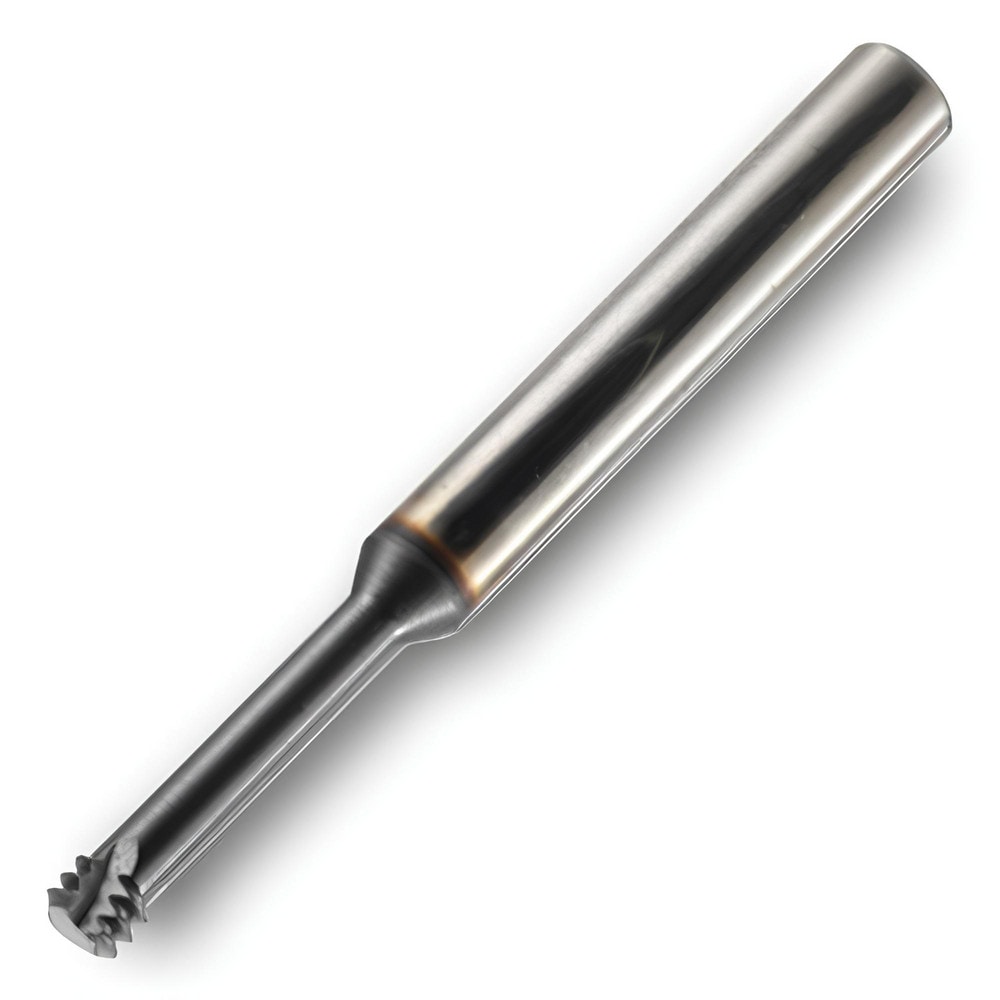

Brand: Ingersoll Cutting Tools / Part #: 5604996
Item #: 99345001
Brand: Ingersoll Cutting Tools
Model #: 5604996
Product Specifications
| Pitch (mm) | 0.50 |
| Material | Solid Carbide |
| Thread Size (mm) | M3x0.5 |
| Thread Depth (mm) | 6.60 |
| Thread Depth | 6.6000 |
| Thread Type | Metric |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.0930 |
| Length of Cut (mm) | 6.6000 |
| Minimum Nominal Diameter (mm) | 3.00 |
| Shank Length (mm) | 56.900 |
| Overall Length (mm) | 63.5000 |
| Thread Standard | Metric |
| Thread Mill Type | Long Reach |
| Flute Direction | Right Hand |
| Material Grade | IN2005 |
| Series | MTECS-ISO |
| Number Of Flutes | 3 |
| Coating/Finish | TiAlN |
| Coolant Through | No |
| Thread Length (mm) | 3.00 |
