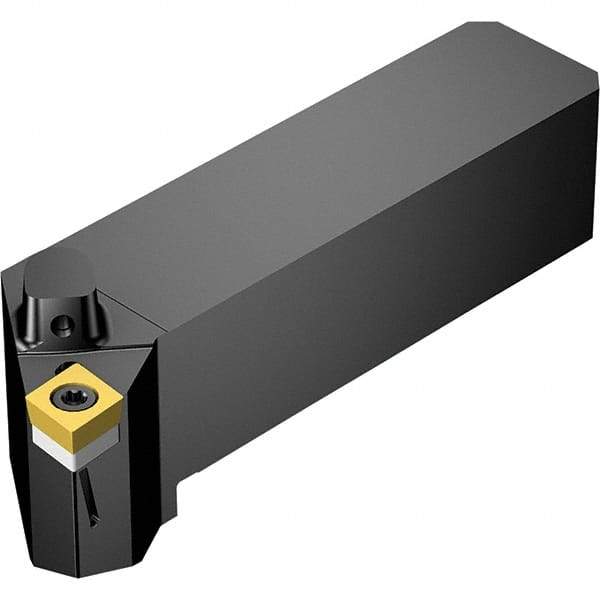

Sandvik Coromant - Left Hand Cut, -5° Lead Angle, 19.05mm Shank Height x 19.05mm Shank Width, Neutral Rake Indexable Turning Toolholder - CCMT 09 T3 08 Insert Compatibility, Series CoroTurn 107
Item #: 30888408
Brand: Sandvik Coromant
Model #: 7445834
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Rake | Neutral |
| Series | CoroTurn 107 |
| Lead Angle | -5 |
| Shank Width (mm) | 19.05 |
| Shank Width (Decimal Inch) | 0.7500 |
| Shank Height (mm) | 19.05 |
| Shank Height (Decimal Inch) | 0.7500 |
| Insert Compatibility | CCMT 09 T3 08 |
| Back of Bar to Cutting Edge (mm) | 93.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 3.6614 |
| Center to Cutting Edge (Decimal Inch) | 1.0000 |
| Head Length (mm) | 43.05 |
| Head Length (Decimal Inch) | 1.6949 |
| Toolholder Material | Steel |
