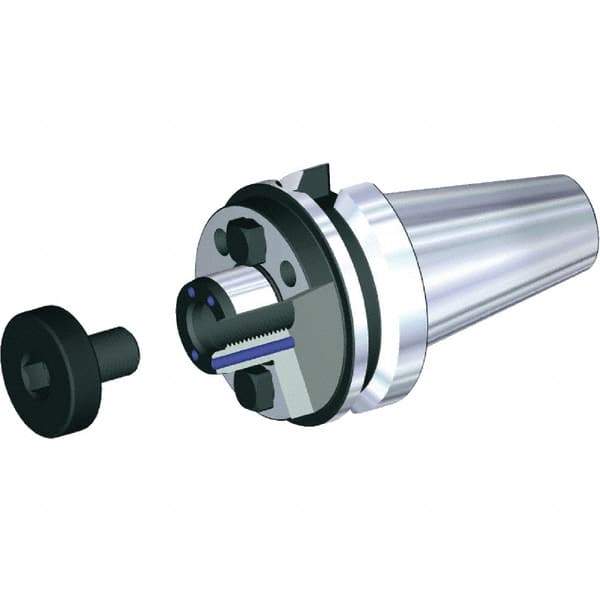

Kennametal - BTKV50 Taper Shank 60mm Pilot Diam Shell Mill Holder - 90mm Flange to Nose End Projection, 129mm Nose Diam, M16x2.0 Lock Screw, Through-Spindle & DIN Flange Coolant
Item #: 30736961
Brand: Kennametal
Model #: 3857095
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BTKV50 |
| Pilot Diameter (mm) | 60.00 |
| Pilot Diameter (Decimal Inch) | 2.3622 |
| Projection Flange to Nose End (mm) | 90.00 |
| Projection Flange to Nose End (Decimal Inch) | 3.5433 |
| Through Coolant | Yes |
| Nose Diameter (mm) | 129.00 |
| Nose Diameter (Decimal Inch) | 5.0787 |
| Balanced to (RPM) | 15000 |
| Coolant Type | Through-Spindle & DIN Flange |
| Lock Screw Thread Size | M16x2.0 |
