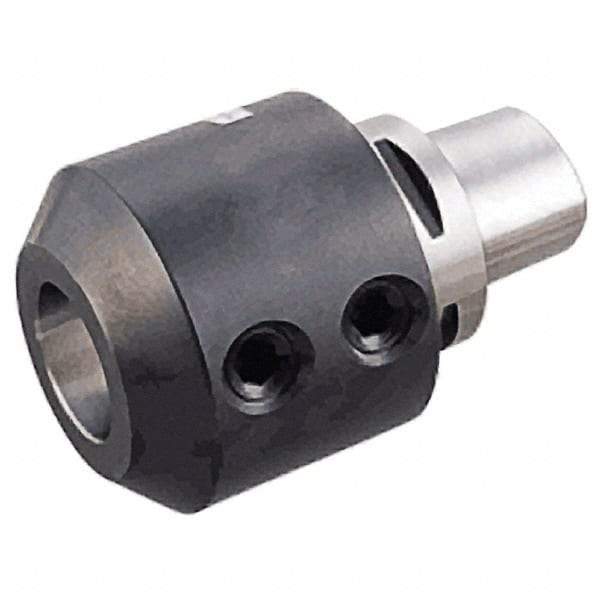

Iscar - C6 Modular Connection 10mm Hole End Mill Holder/Adapter - 35mm Nose Diam, 60mm Projection, Through-Spindle Coolant
Item #: 30725071
Brand: Iscar
Model #: 4561379
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Hole Diameter (mm) | 10.00 |
| Nose Diameter (mm) | 35.00 |
| Projection (mm) | 60.00 |
| Projection (Decimal Inch) | 2.3622 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 38.00 |
| Clamping Depth (Decimal Inch) | 1.4961 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
| Retention Knob Thread Size | M20 |
