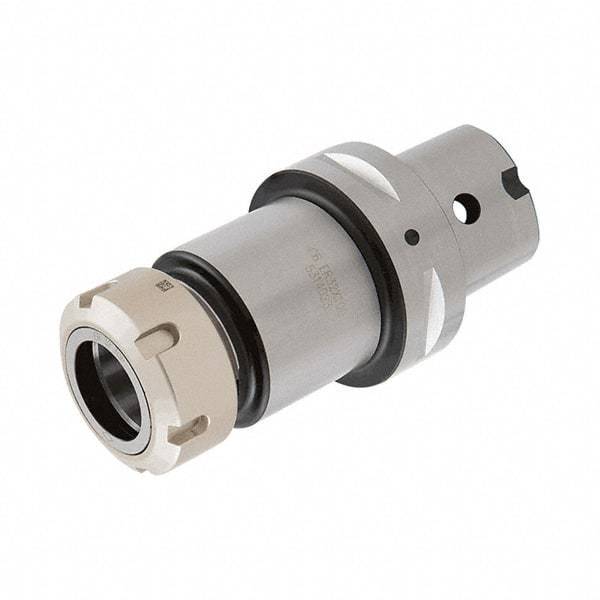

Iscar - 1mm to 16mm Capacity, 160mm Projection, Modular Connection, ER25 Collet Chuck - 0.0001" TIR, Through-Spindle
Item #: 30724843
Brand: Iscar
Model #: 4561361
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Projection (mm) | 160.00 |
| Projection (Decimal Inch) | 6.2992 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 16.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.6299 |
| Nose Diameter (mm) | 42.00 |
| Nose Diameter (Decimal Inch) | 1.6535 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0030 |
| Coolant Type | Through-Spindle |
