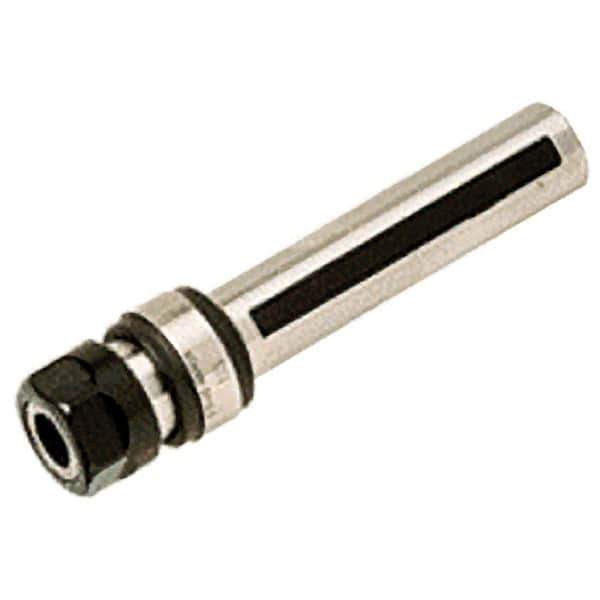

Iscar - 20mm Straight Shank Diam Tapping Chuck/Holder - M3 to M10 Tap Capacity, 41.6mm Projection
Item #: 30720379
Brand: Iscar
Model #: 4545001
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Minimum Tap Capacity (mm) | M3 |
| Maximum Tap Capacity (mm) | M10 |
| Projection (Decimal Inch) | 1.6378 |
| Projection (mm) | 41.60 |
| Quick Change | No |
| Minimum Collet Capacity (mm) | 0.50 |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Maximum Collet Capacity (mm) | 10.00 |
| Collet System | ER Tap |
| Collet Series | ER 16 |
| Nose Diameter (mm) | 28.00 |
| Nose Diameter (Decimal Inch) | 1.1024 |
| Overall Length (mm) | 121.60 |
| Overall Length (Decimal Inch) | 4.7874 |
| Through Coolant | No |
