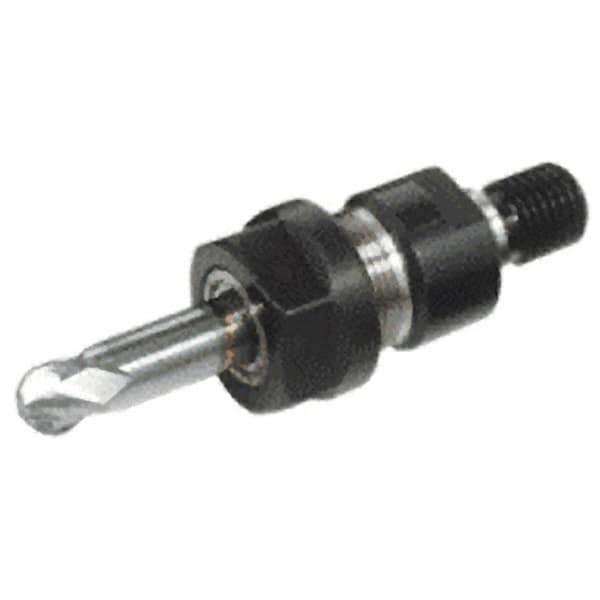

Iscar - 0.5mm to 10mm Capacity, 1-1/2" Projection, Threaded Shank, ER16 Collet Chuck - 58.1mm OAL
Item #: 30717417
Brand: Iscar
Model #: 4509093
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Threaded Shank |
| Threaded Shank Size | M10 |
| Projection (Inch) | 1-1/2 |
| Projection (Decimal Inch) | 1.5000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 58.10 |
| Overall Length (Decimal Inch) | 2.2874 |
| Actuator Type | Wrench |
| Shank Length (mm) | 20.00 |
| Shank Length (Decimal Inch) | 0.7874 |
| Nose Diameter (mm) | 22.00 |
| Nose Diameter (Decimal Inch) | 0.8661 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0030 |
| Coolant Type | Through-Spindle |
