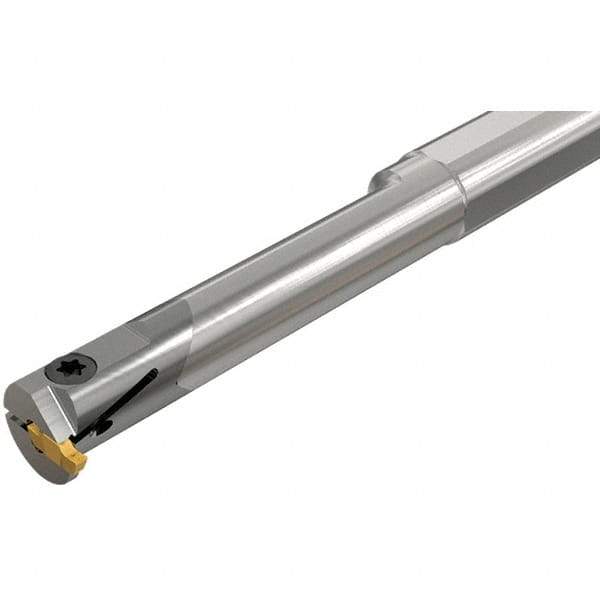

Iscar - 16mm Min Bore Diam, 160mm OAL, 16mm Shank Diam, GEHI-SC Indexable Boring Bar - 70mm Max Bore Depth, GEPI Insert, Screw Holding Method
Item #: 30706279
Brand: Iscar
Model #: 2801306
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GEHI-SC |
| Series | Cut Grip |
| Minimum Bore Diameter (mm) | 16.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.6299 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 70.00 |
| Maximum Bore Depth (Decimal Inch) | 2.7559 |
| Overall Length (mm) | 160.00 |
| Overall Length (Decimal Inch) | 6.2992 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Compatibility | GEPI |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Profiling; Threading; Turning |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 11.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4331 |
| Complete Insert Compatibility | GEMI 3002M; GEPI 2.47-0.20; GEPI 2.5-MT0.05; GEPI 2.5-WT0.05; GEPI 2.50-0.20; GEPI 2.50-0.10; GEPI 2.70-0.20; GEPI 3.00-1.50; GEPI 3.00-0.20; GEPI 3.18-1.59 |
| Toolholder Material | Carbide |
