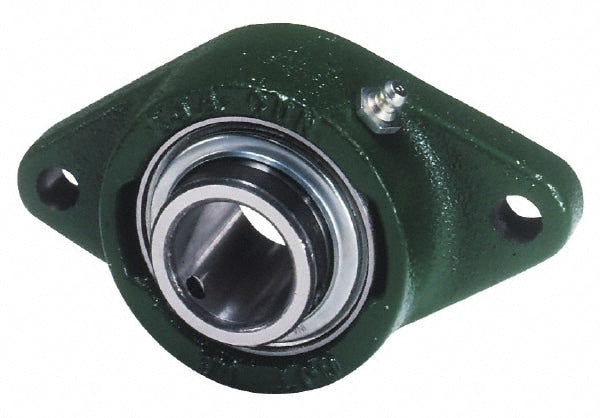

50mm ID, 7.52" OAL x 2.362" OAH 2-Bolt Set Screw Econseal In
Item #: 57132383
Brand: INA Bearing
Model #: PCJTY50
Product Specifications
| Type | 2Bolt Setscrew Econseal In |
| Inside Diameter (mm) | 50.0000 |
| Inside Diameter (Decimal Inch) | 1.9690 |
| Overall Length (Decimal Inch) | 7.5200 |
| Overall Height (Decimal Inch) | 2.3620 |
| Static Load Capacity | 5200.0 |
| Dynamic Load Capacity (Lb.) | 7900 |
| Distance Between Base And Center (mm) | 116.5000 |
| Distance Between Base And Center (Decimal Inch) | 4.5870 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 2.500 |
| Flange Thickness (Decimal Inch) | 0.6300 |
| Type | 2Bolt Setscrew Econseal In |
| Inside Diameter (mm) | 50.0000 |
| Inside Diameter (Decimal Inch) | 1.9690 |
| Overall Length (Decimal Inch) | 7.5200 |
| Overall Height (Decimal Inch) | 2.3620 |
| Static Load Capacity | 5200.0 |
| Dynamic Load Capacity (Lb.) | 7900 |
| Distance Between Base And Center (mm) | 116.5000 |
| Distance Between Base And Center (Decimal Inch) | 4.5870 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 2.500 |
| Flange Thickness (Decimal Inch) | 0.6300 |
| MSC Part # | 57132383 |
| Mfr Part # | PCJTY50 |
| Country of Origin Country of Origin is subject to change | Slovakia |
