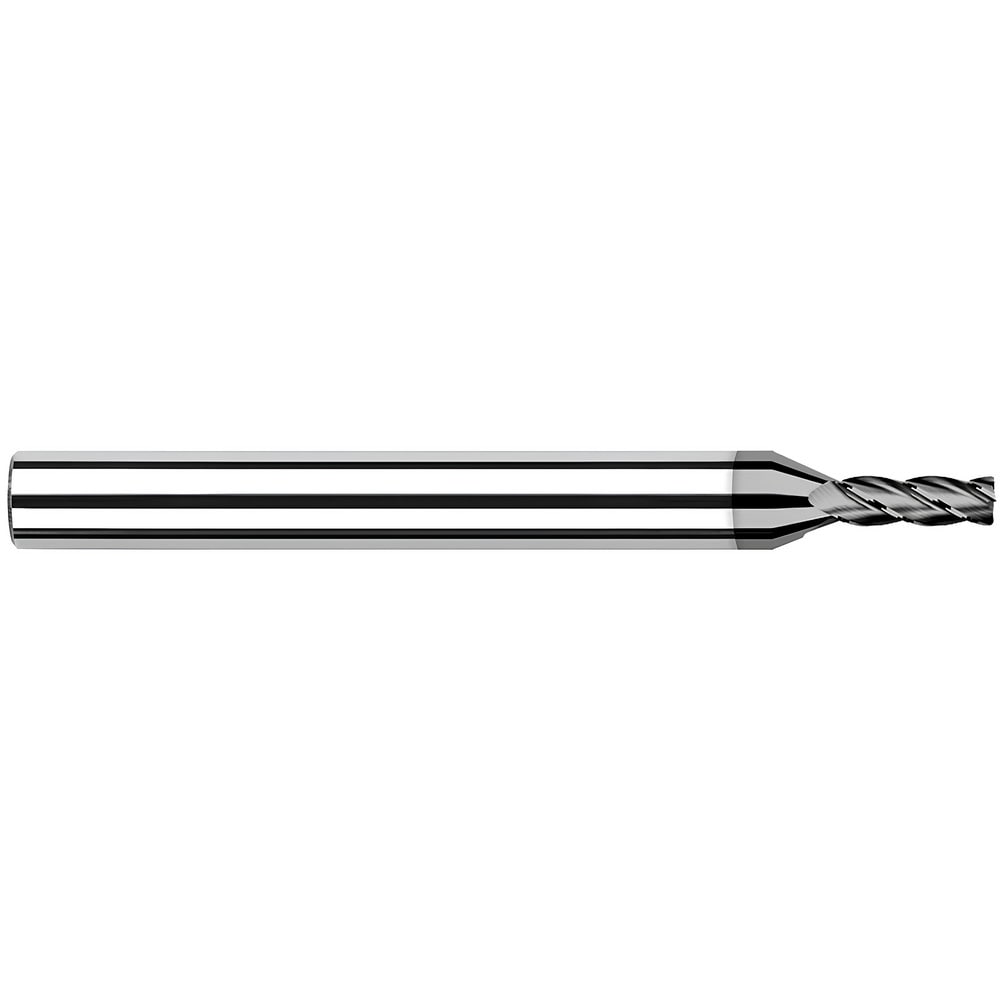

Corner Radius End Mill: 0.0620" Dia, 1.125" LOC, 0.0050" Radius, 4 Flute, Solid Carbide
Item #: 48200596
Brand: Harvey Tool
Model #: 955462
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0620 |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | Diamond |
| Overall Length (Inch) | 1-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0050 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 1.5 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1860 |
| Length Type | Regular |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Corner Radius Tolerance | 0.0010 to -0.0010 in |
| Mill Diameter Tolerance | 0.0000/-0.0010 in |
| Shank Diameter Tolerance | h6 |
| Overall Length Tolerance | 0.0100/-0.0000 in |
| Primary Workpiece Material | Non-ISO; Graphite |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | O |
| Series | Material Specific End Mills; Diamond End Mills for Non-Ferrous Materials - CVD Diamond - Corner Radius |
| Material Application | Composite; Graphite |
| Coating Classification | PVD |
| For Use With. | High Precision Toolholders |
