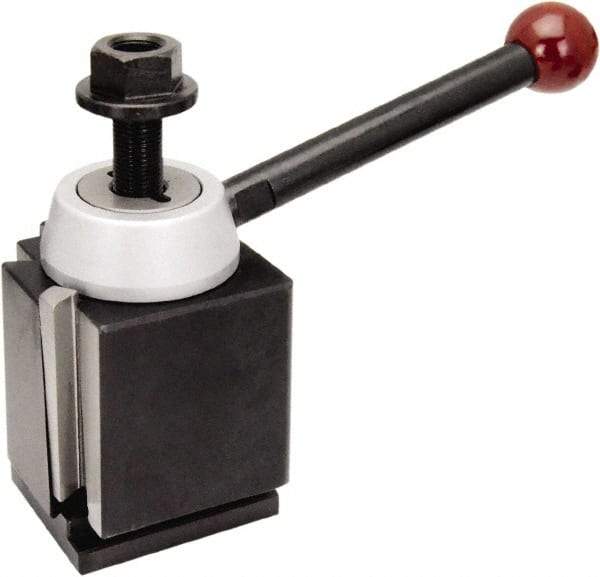

Value Collection - Tool Posts Type: Quick Change Tool Post - Wedge Type Series: 300
Item #: 30570873
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
The clamping mechanism is a wedge that pushes out from the side of the dovetail when the clamping lever on the tool post is engaged.
Product Specifications
Tool Posts; Type: Quick Change Tool Post - Wedge Type ; Series: 300 ; Lathe Swing (Inch): 13 to 18 ; Through Coolant: No ; Base Width (Inch): 3-1/2 ; Tool Post Height (Inch): 5-1/8
| Type | Quick Change Tool Post - Wedge Type |
| Series | 300 |
| Lathe Swing (Inch) | 13 to 18 |
| Through Coolant | No |
| Base Width (Inch) | 3-1/2 |
| Tool Post Height (Inch) | 5-1/8 |
| Tool Post Height (Decimal Inch) | 5.1250 |
| Centerline to Handle Edge (Inch) | 7-7/8 |
| Bolt Hole Diameter (Inch) | 3/4 |
| Bolt Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Inch) | 4-7/8 |
| Centerline to Body (Inch) | 3 |
| Body Height (Inch) | 3 |
| Additional Information | Tool Post T-Nut may require machining |
