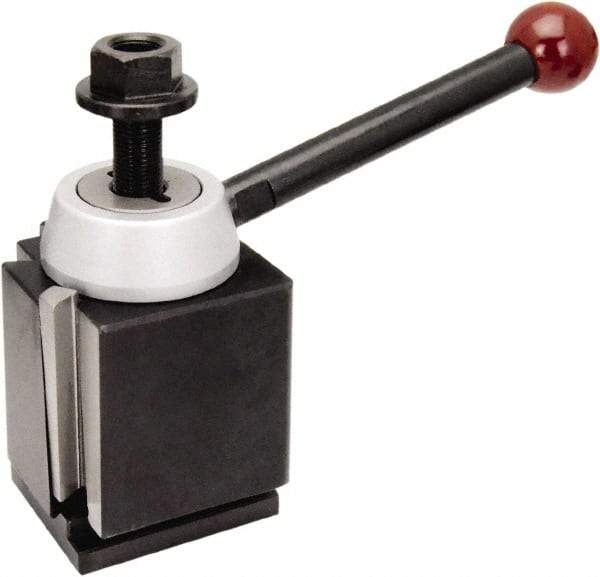

Value Collection - Tool Posts Type: Quick Change Tool Post - Wedge Type Series: 400
Item #: 30568448
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
The clamping mechanism is a wedge that pushes out from the side of the dovetail when the clamping lever on the tool post is engaged.
Product Specifications
Tool Posts; Type: Quick Change Tool Post - Wedge Type ; Series: 400 ; Lathe Swing (Inch): 14 to 20 ; Through Coolant: No ; Base Width (Inch): 4 ; Tool Post Height (Inch): 6-1/4
| Type | Quick Change Tool Post - Wedge Type |
| Series | 400 |
| Lathe Swing (Inch) | 14 to 20 |
| Through Coolant | No |
| Base Width (Inch) | 4 |
| Tool Post Height (Inch) | 6-1/4 |
| Tool Post Height (Decimal Inch) | 6.2500 |
| Centerline to Handle Edge (Inch) | 9 |
| Bolt Hole Diameter (Inch) | 7/8 |
| Bolt Hole Diameter (Decimal Inch) | 0.8750 |
| Overall Height (Inch) | 6 |
| Centerline to Body (Inch) | 3-5/8 |
| Body Height (Inch) | 3-5/8 |
| Additional Information | Tool Post T-Nut may require machining |
