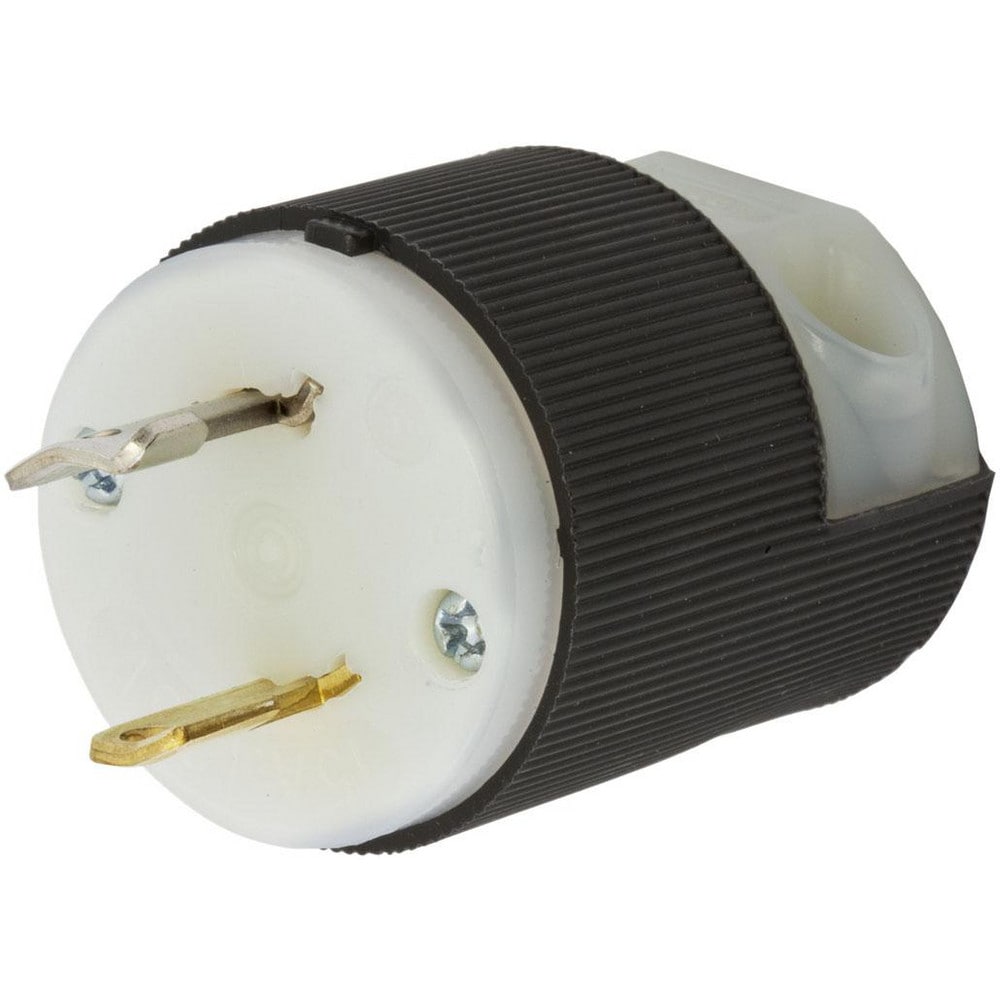

Twist Lock Plugs & Connectors; Connector Type: Plug; Grade: Industrial; Material: Nylon; Grounding Style: Non-Grounding; Amperage: 15.0000; Voltage: 125V; Power Rating: 125; Number Of Poles: 2
Item #: 83807149
Brand: Hubbell Wiring Device-Kellems
Model #: HBL7545C
Product Specifications
| Connector Type | Plug |
| Grade | Industrial |
| Material | Nylon |
| Grounding Style | Non-Grounding |
| Amperage | 15.0000 |
| Voltage | 125V |
| Power Rating | 125 |
| Number Of Poles | 2 |
| Number Of Wires | 2.000 |
| Color | White; Black |
| Resistance Features | Moisture-Resistant |
| Minimum Cord Diameter (Decimal Inch) | 0.2300 |
| Maximum Cord Diameter (Decimal Inch) | 0.7200 |
| Number Of Phases | 1 |
| Ingress Protection Rating | IP20 |
| Wire Size | 14.000 AWG; 12.000 AWG |
| Standards | UL 498; CM; Certified to CSA C22.2 No.42; Fed.Spec. W-C-596 |
| Nema Configuration | L1-15P |
| UNSPSC Code | 39121400 |
| Country of Origin | Puerto Rico |
