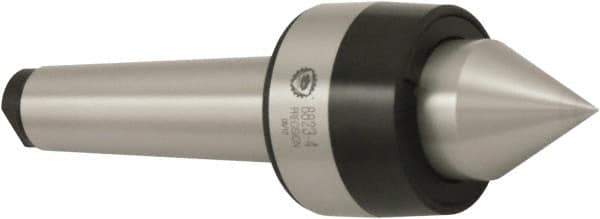

Bison - MT3 Morse Taper Shank, 48mm Head Diam, Live Center - 6,000 Max RPM, 28mm Point Diam, 1.28" Point Len, 440 Lb Max Workpiece, Standard Point
Item #: 30520407
Brand: Bison
Model #: 7-567-003
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Morse Taper |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 440.00 |
| Maximum Workpiece Weight (kg) | 200.00 |
| Point Style | Standard |
| Point Diameter (mm) | 28.00 |
| Point Diameter (Decimal Inch) | 1.1020 |
| Tip Diameter (mm) | 28.00 |
| Tip Diameter (Decimal Inch) | 1.1020 |
| Point Length (Decimal Inch) | 1.2800 |
| Accuracy (Decimal Inch) | 0.000100 |
| Head Diameter (mm) | 48.00 |
| Head Diameter (Decimal Inch) | 1.8890 |
| Maximum RPM | 6000 |
