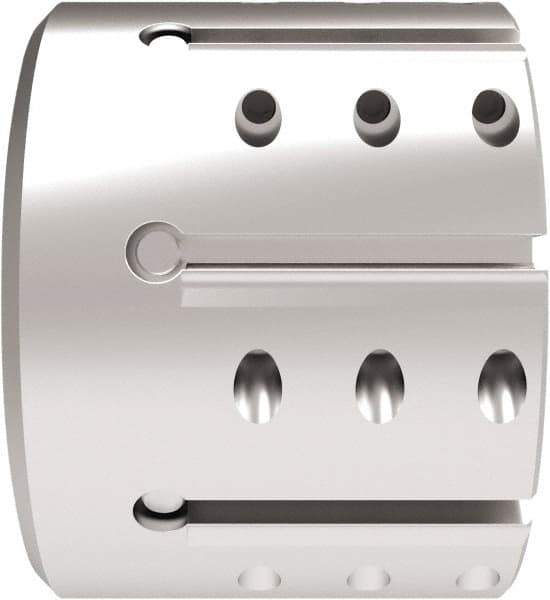

Allied Machine and Engineering - 2.217" Cut Diam, 1-1/2" Max Depth of Cut, 3/4" Arbor Hole Diam, Internal/External Indexable Thread Mill - Insert Style TN150K, 1-1/2" Insert Size, 6 Inserts, Toolholder Style TSR, 2-1/4" OAL
Item #: 30499206
Brand: Allied Machine and Engineering
Model #: TSR-2217-6F150
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.2170 |
| Maximum Hole Depth (Decimal Inch) | 1.5000 |
| Insert Style | TN150K |
| Insert Size (Decimal Inch) | 1.5000 |
| Toolholder Style | TSR |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 2.2500 |
| Number of Threading Inserts | 6 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Number of Flutes | 6 |
| Neck Diameter (Decimal Inch) | 2.0000 |
| Minimum Bore Diameter (Decimal Inch) | 0.7500 |
