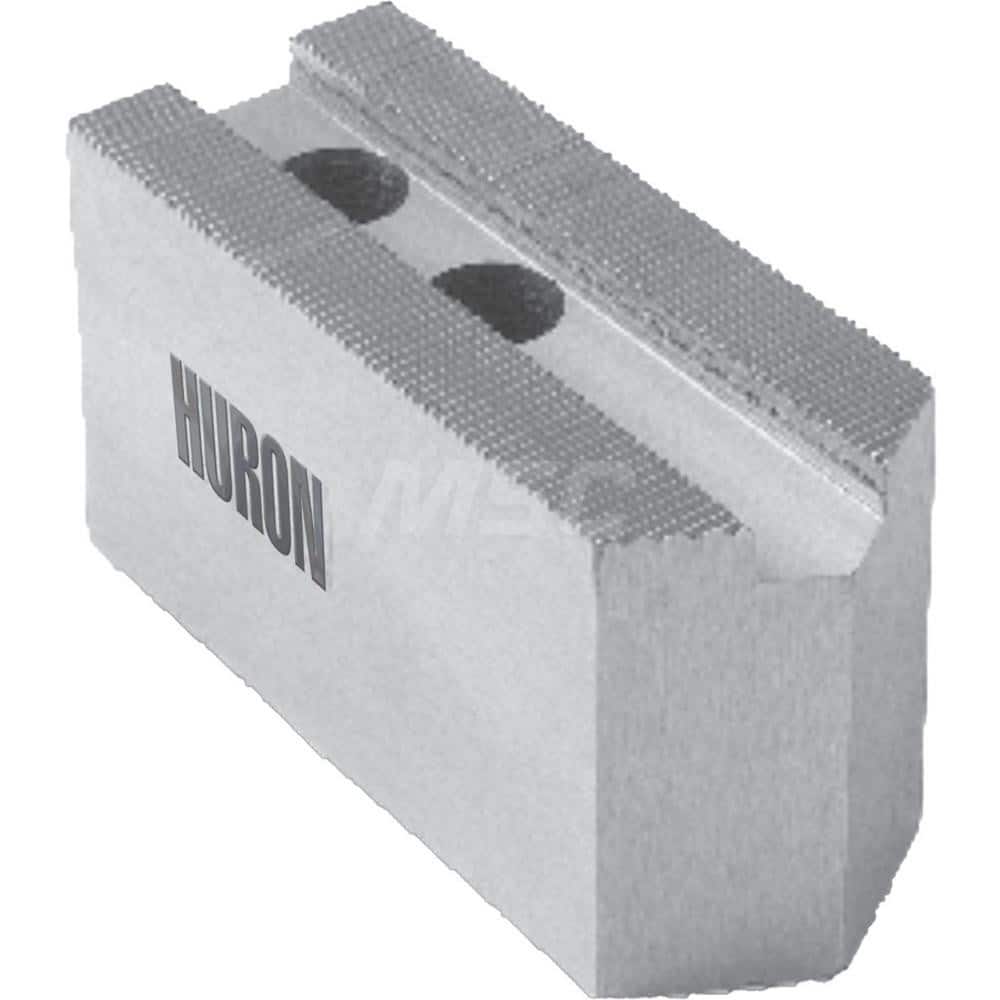

Huron Machine Products - Soft Lathe Chuck Jaws; Jaw Type: Square ; Material: 6160 Aluminum ; Jaw Interface Type: 1.5mm x 60? Serrated ; Maximum Compatible Chuck Diameter (Inch): 12 ; Minimum Compatible Chuck Diameter (Inch): 1 ; Overall Height (Inch): 3-
Item #: 30440853
Brand: Huron Machine Products
Model #: AKT12MHPL
Product Specifications
Soft Lathe Chuck Jaws; Jaw Type: Square ; Material: 6160 Aluminum ; Jaw Interface Type: 1.5mm x 60? Serrated ; Maximum Compatible Chuck Diameter (Inch): 12 ; Minimum Compatible Chuck Diameter (Inch): 1 ; Overall Height (Inch): 3-1/4
| Jaw Type | Square |
| Material | 6160 Aluminum |
| Jaw Interface Type | 1.5mm x 60? Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 12 |
| Minimum Compatible Chuck Diameter (Inch) | 1 |
| Overall Height (Inch) | 3-1/4 |
| Groove Width (Decimal Inch) | 0.7100 |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.5500 |
| Jaw End Shape | Pointed |
| Fastener Size (mm) | M14 |
| Number of Jaws | 1 |
| Overall Width/Diameter (Inch) | 2 |
| Overall Length (Inch) | 6 |
