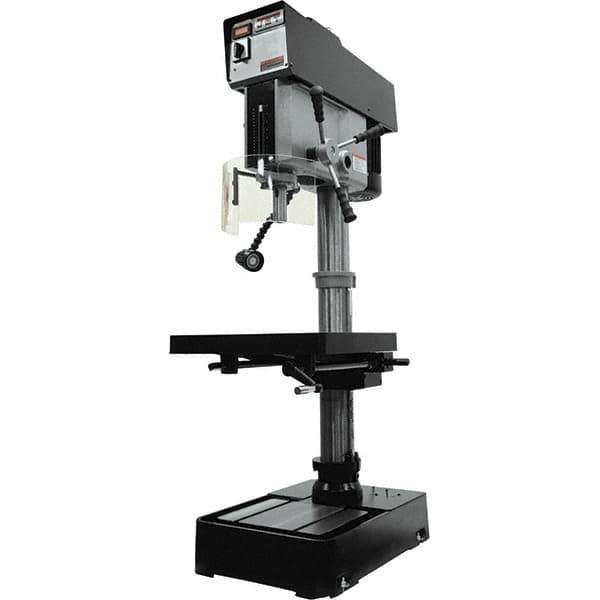

Jet - 10-7/16" Swing, Variable Speed Pulley Drill Press - Variable Speed, 2 hp, Three Phase
Item #: 30434898
Brand: Jet
Model #: 354231
Exact Tooling IR#: 04
Features and Benefits
Floor drill presses, also known as standing drill presses, offer more power options than bench drill presses. They are most suited for heavy-duty operations.
Drill presses are used for several countersinking, counterboring, drilling, reaming and tapping operations.They are used for heavy-duty metalworking operations.
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Stand Type | Floor |
| Machine Type | Drill Press |
| Swing Distance (Inch) | 10-7/16 |
| Spindle Speed Control | Variable Speed Pulley |
| Phase | 3 |
| Spindle Taper Size | 3MT |
| Spindle Travel Length (Inch) | 6 |
| Horsepower (HP) | 2 |
| Voltage | 230/460 |
| Minimum Spindle Speed (RPM) | 300 |
| Maximum Spindle Speed (RPM) | 2000 |
| Drilling Capacity in Steel (Inch) | 1-3/8 |
| Drilling Capacity in Cast Iron (Inch) | 1-1/2 |
| Number of Spindle Speeds | variable |
| Spindle to Table Distance (Inch) | 30-1/4 |
